Fiat

EDC16 C39 BOSCH

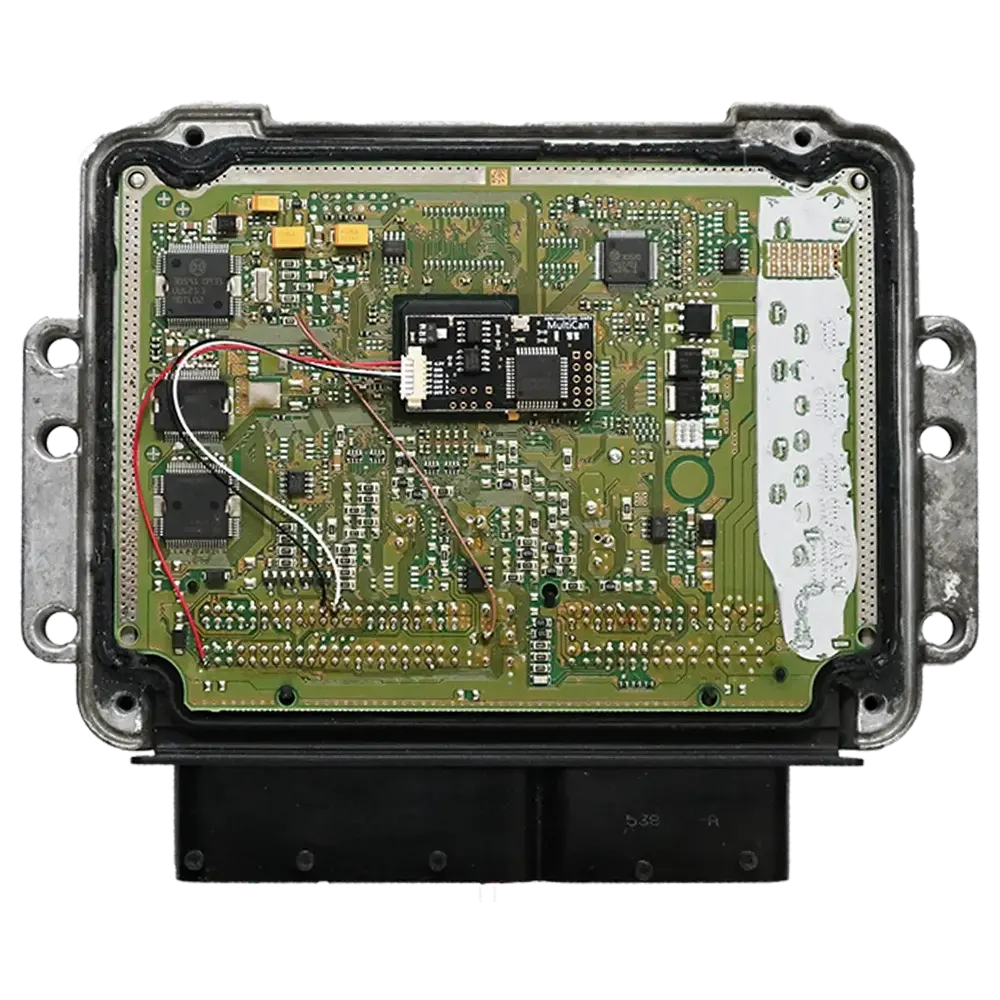

Fiat edc 16 c39 ECU unit

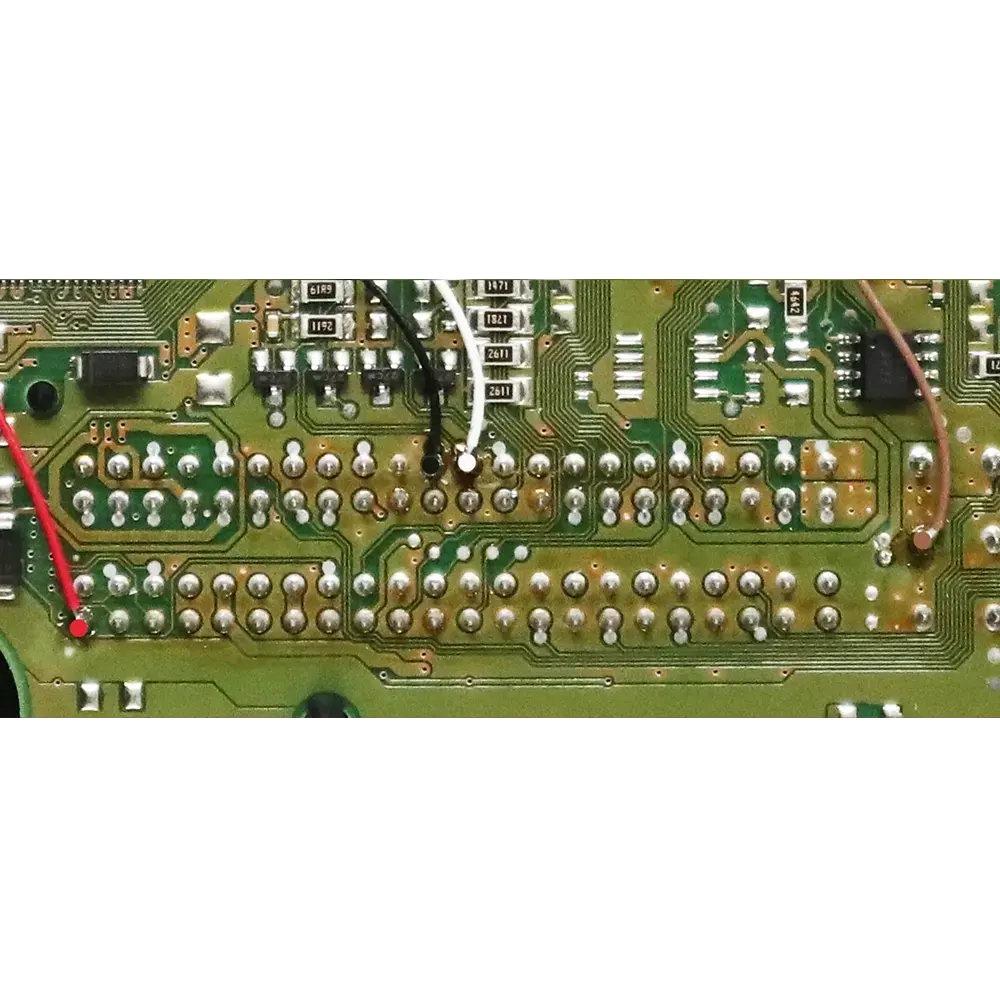

Fiat edc 16 c39 ECU connection diagram
Fiat edc 16 c39 ECU unit

CONNECTION

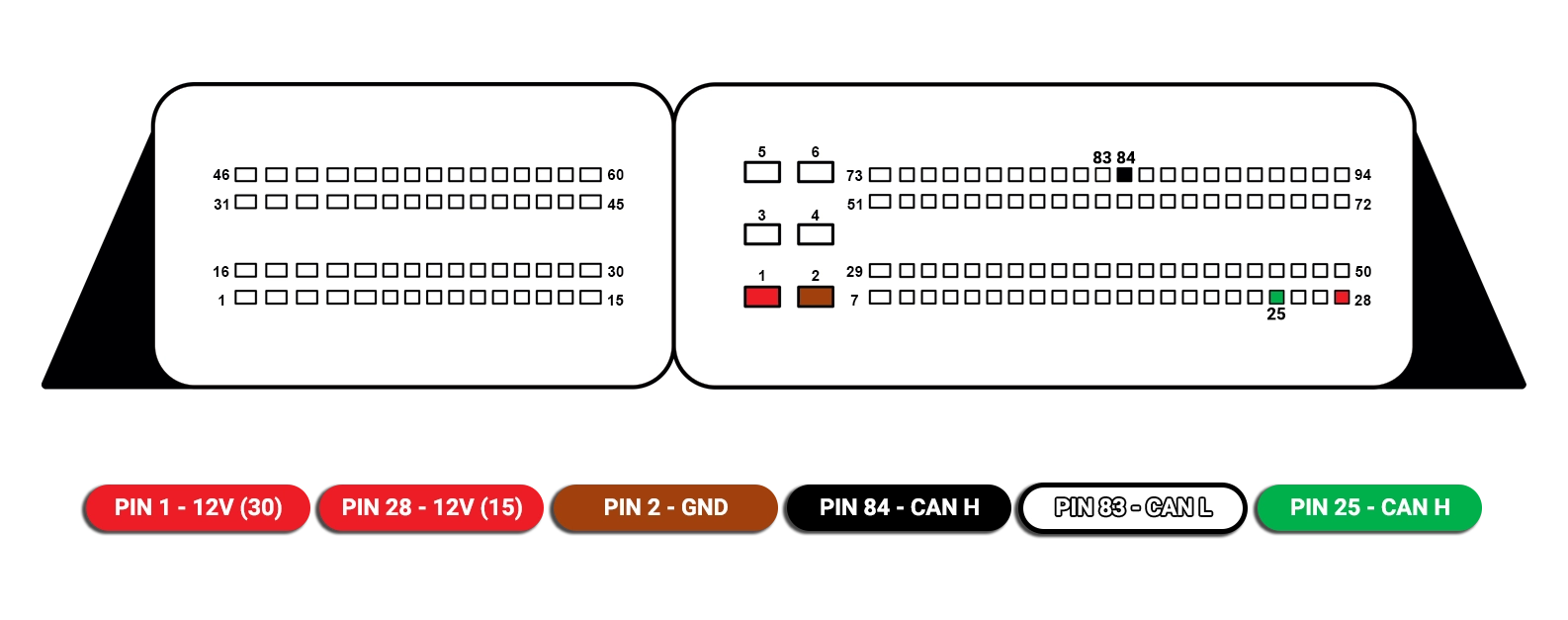

Fiat edc 16 c39 connection plug

Upload ECU file

ISK emulator module MultiCan emulator device
BUY NOW
Bosch EDC16 C39 ECU — HW, OEM, SW numbers | Fiat, Iveco, Alfa Romeo, Lancia

The table below lists hardware (HW), OEM and software (SW) numbers for the Bosch EDC16 C39 ECU in Fiat, Iveco, Alfa Romeo and Lancia vehicles.

Producer Controller type HW no. OEM SW no. Car brand Model Engine Year
BoschEDC 16 C390281012149FiatCroma1.9 JTD2005
BoschEDC 16 C3902810121931037376661
1037378090		Iveco
BoschEDC 16 C390281012294FiatMultipla1.9 JTD2004
BoschEDC 16 C390281012862Alfa Romeo1471.9 JTD2005
BoschEDC 16 C3902810129611037377150
1037386777		Fiat
BoschEDC 16 C390281012992FiatSedici1.9 JTD2009-2010
BoschEDC 16 C3902810131381037377150
1037389889		Alfa Romeo
BoschEDC 16 C3902810135791037376661
1037394040		Alfa Romeo1592.4 JTD2008
BoschEDC 16 C390281013580FiatBravo1.9 JTD2008
BoschEDC 16 C390281013675FiatDoblo1.9 JTD2008-2012
BoschEDC 16 C3902810142091037376661
1037390941
1037391913
1037501114
1037510736		FiatDucato
BoschEDC 16 C3902810142111037391915FiatDucato2.3JTD
BoschEDC 16 C3902810147331037377150
1037391915		FiatDucato2.3JTD
BoschEDC 16 C390281015573Alfa RomeoMiTo1.6 JTD2009
BoschEDC 16 C390281015575FiatLinea1.6 JTD2006
BoschEDC 16 C390281015951Alfa RomeoGiulietta2.0 JTD2010-2014
BoschEDC 16 C3902810160511037501114FiatDucato
BoschEDC 16 C390281016223FiatDucato2.3 JTD2010
BoschEDC 16 C390281016291FiatSedici2.0 JTD2009-2010
BoschEDC 16 C390281017784Alfa RomeoGiulietta2.0 JTD2010-2014
BoschEDC 16 C390281018720FiatDoblo1.6 JTD2008-2012
BoschEDC 16 C390281B02539FiatGrande Punto1.3 JTD2007
BoschEDC 16 C390281B03940LanciaDelta1.9 JTD2008
BoschEDC 16 C390281B04453FiatDoblo1.6 JTD2008-2012
