Fiat

IAW 5NF.T1

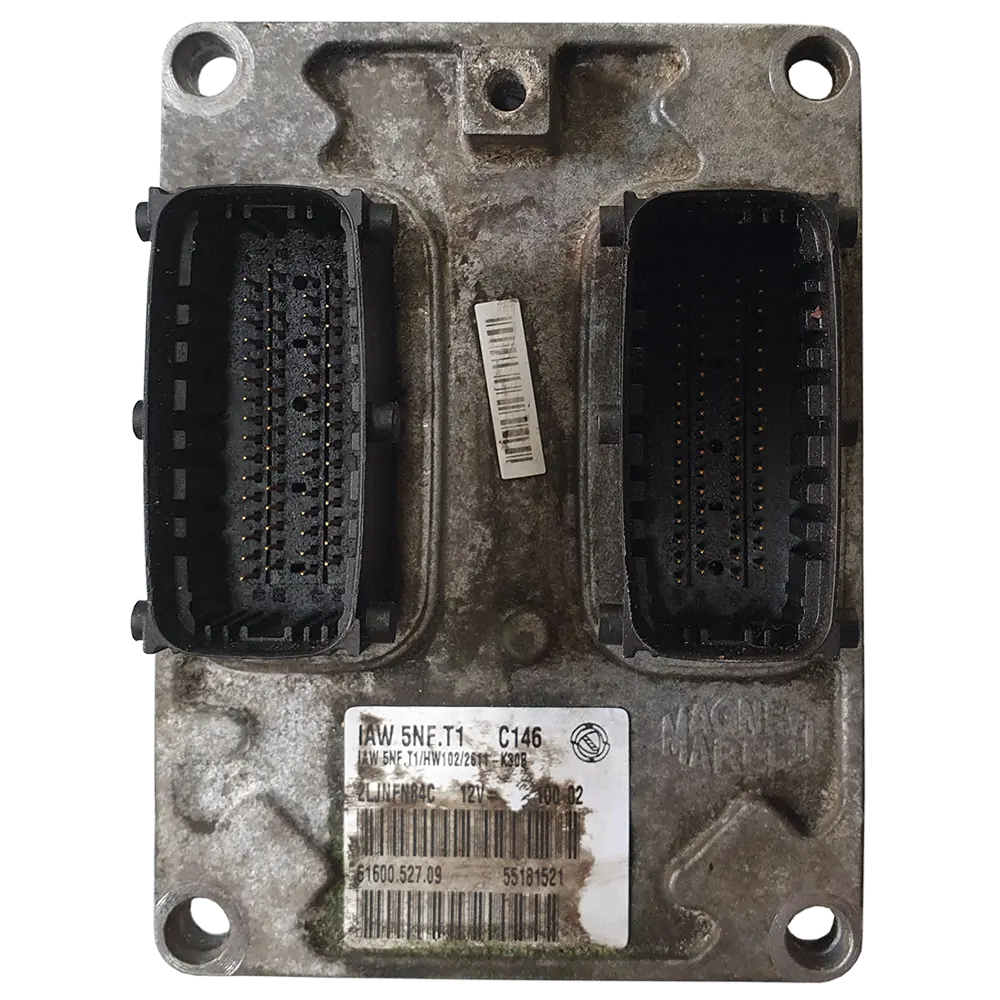

Fiat iaw 5nf t1 ECU unit

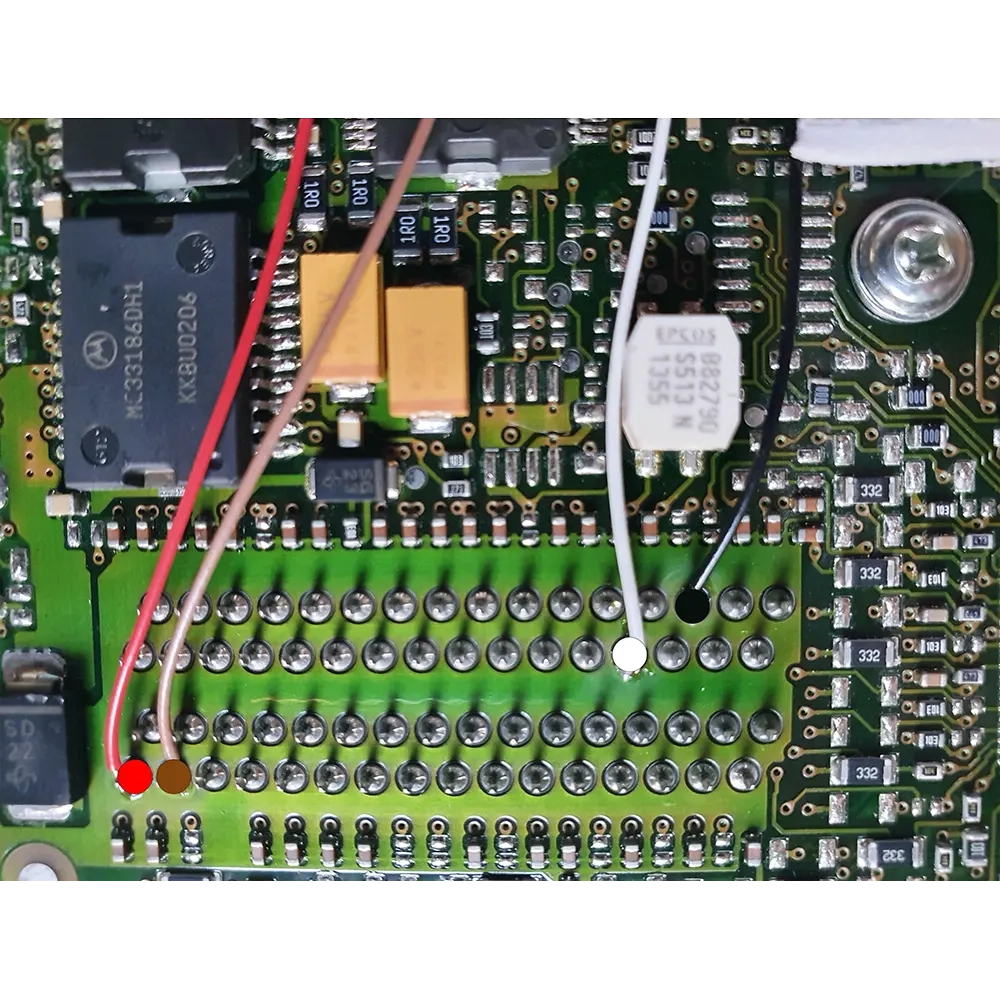

Fiat iaw 5nf t1 ECU connection diagram

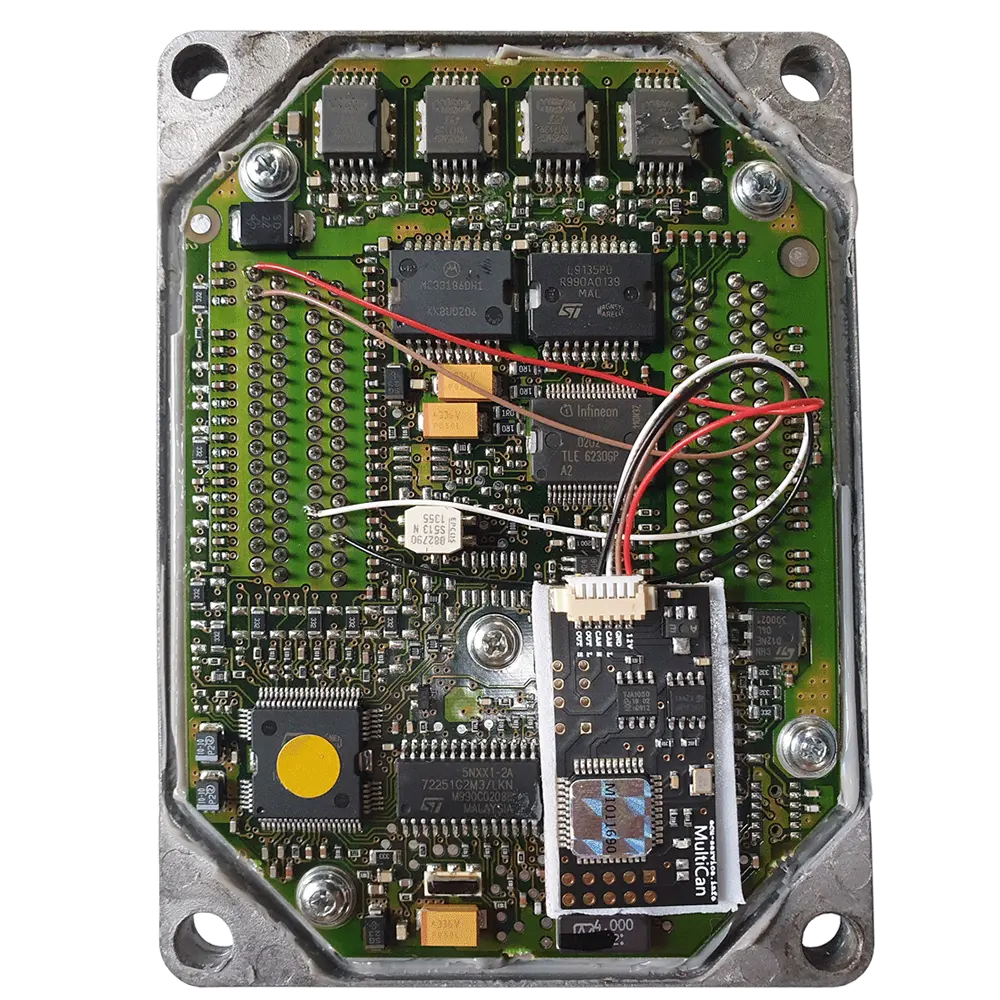

Fiat iaw 5nf t1 ECU connection diagram
Fiat iaw 5nf t1 ECU unit

CONNECTION

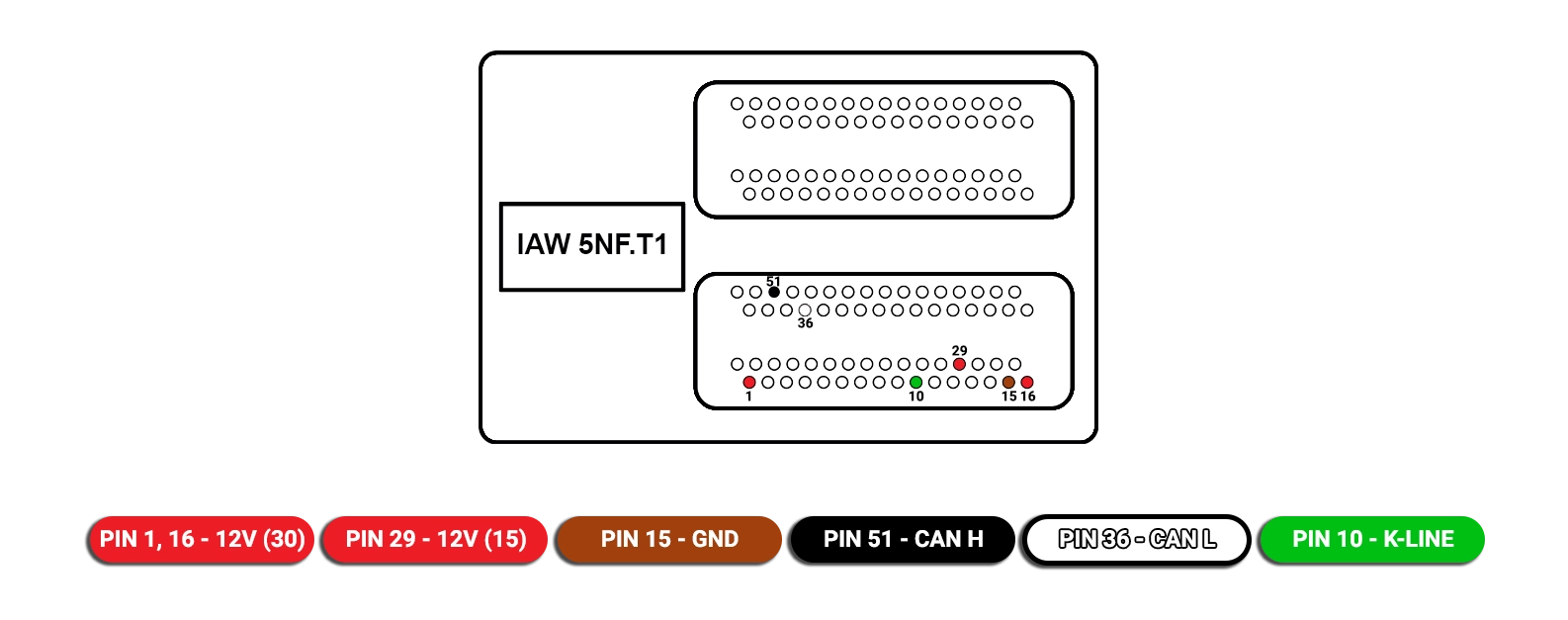

Fiat iaw 5nf t1 connection plug

Upload ECU file

ISK emulator module MultiCan emulator device
BUY NOW
Magneti Marelli IAW 5NF.T1 ECU — HW, OEM, SW numbers | Fiat, Iveco

The table below lists hardware (HW), OEM and software (SW) numbers for the Magneti Marelli IAW 5NF.T1 ECU in Fiat and Iveco vehicles.

Producer Controller type HW no. OEM SW no. Car brand Model Engine Year
Magneti MarelliIAW5NF T1IAW5SFHW207Fiat5Sf3
Magneti MarelliIAW5NF T1IAW5SFHW3005SF3M1
5SF3M2		Fiat5Sf3
Magneti MarelliIAW5NF T1IAW5SFHW401Fiat5Sf9
Magneti MarelliIAW5NF T1IAW5SFHW403Fiat5Sf8
Magneti MarelliIAW5NF T1IAW5SFHW405Fiat5Sf9
Magneti MarelliIAW5NF T1IAW5SFHW470Iveco3.0
