Fiat

MD1CS069

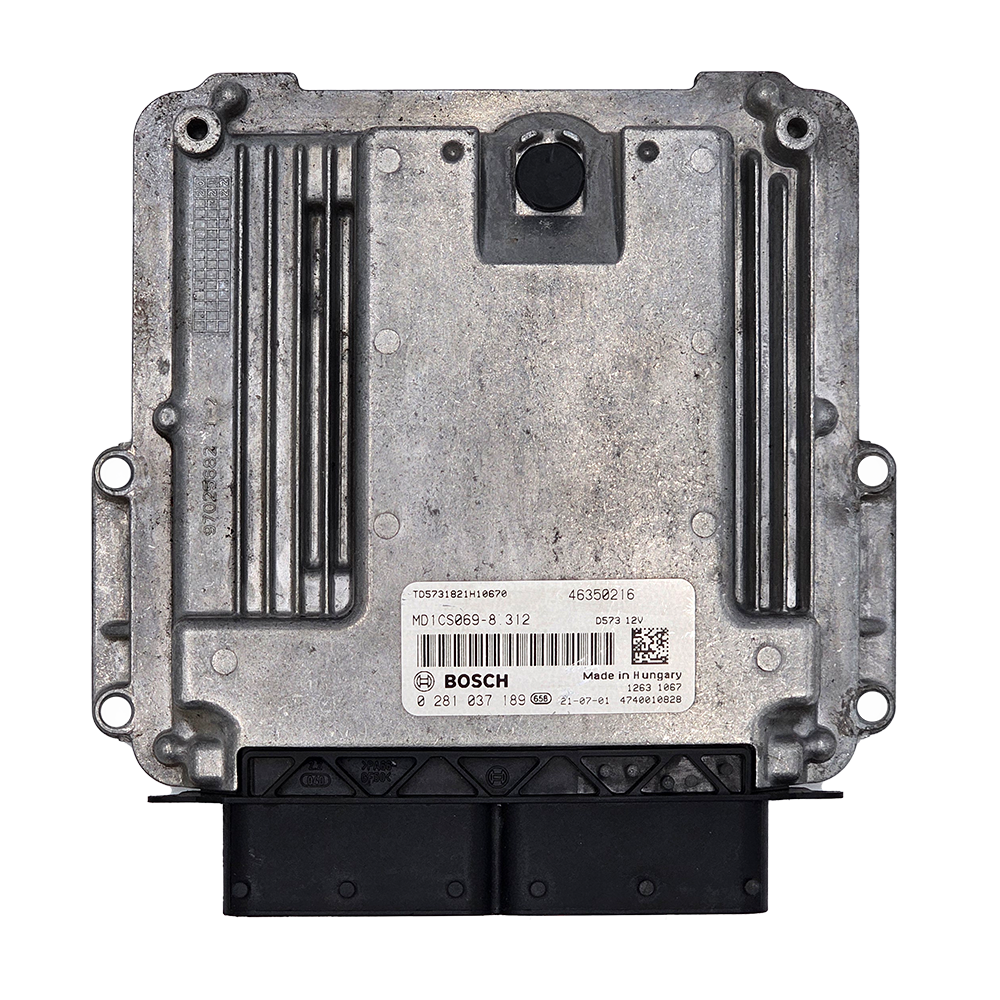

Fiat md1cs069 ECU label

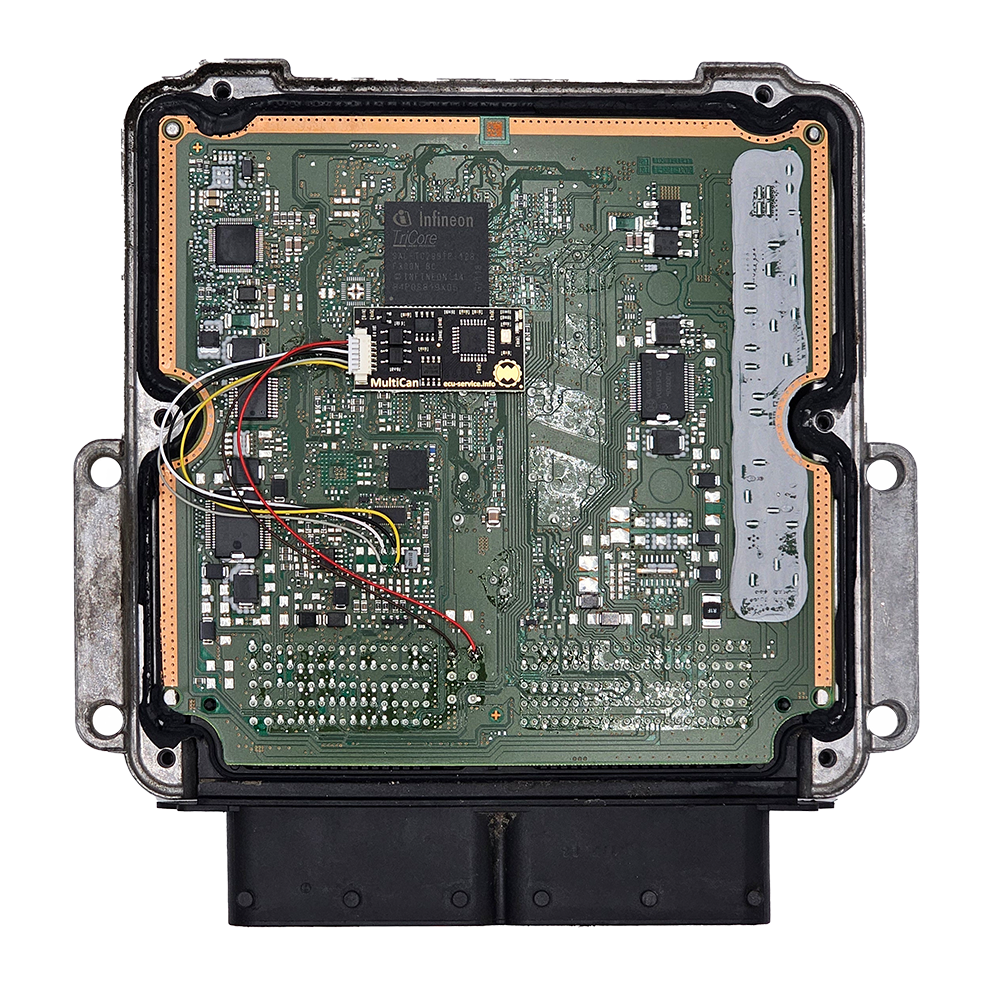

Fiat md1cs069 ECU unit

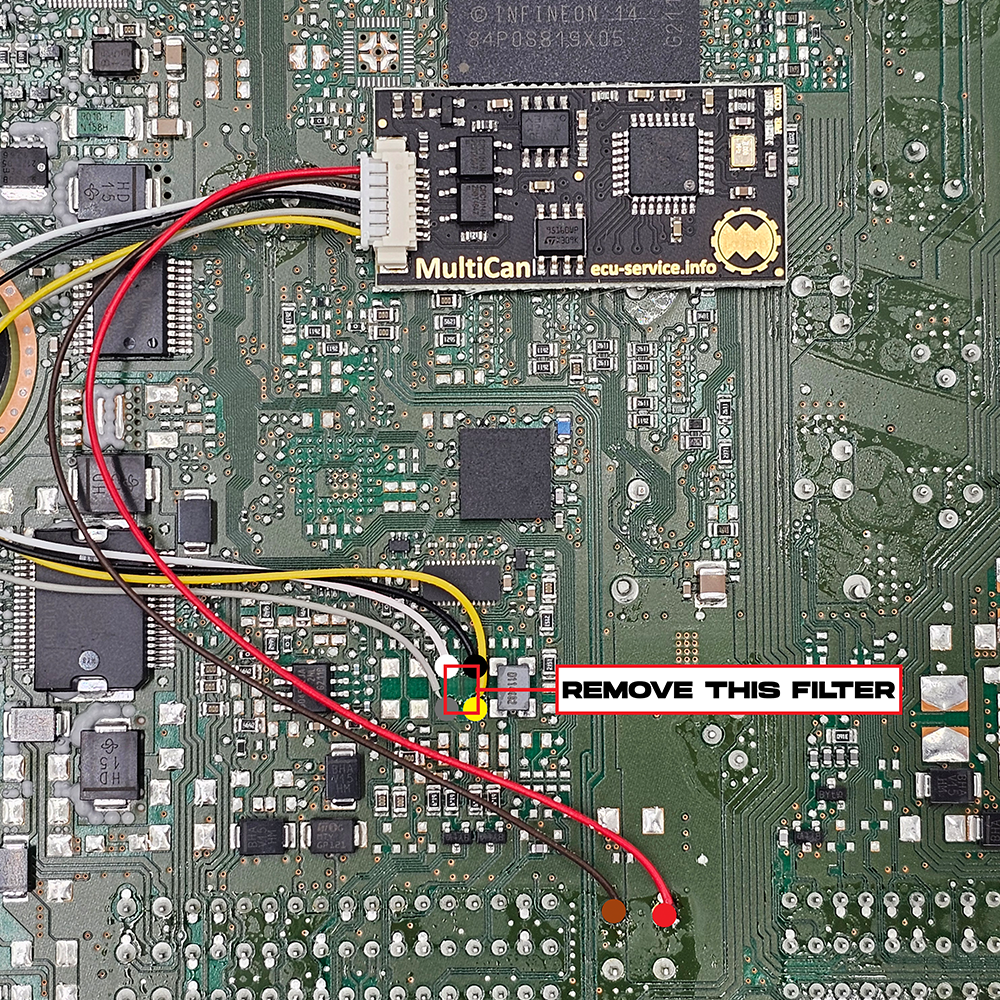

Fiat md1cs069 ECU connection diagram
Fiat md1cs069 ECU label

CONNECTION

Fiat md1cs199 connection plug

Upload ECU file

MultiCan emulator device
BUY NOW
Bosch MD1CS069 ECU — HW, OEM, SW numbers | Fiat, Peugeot, Citroën, Iveco

The table below lists hardware (HW), OEM and software (SW) numbers for the Bosch MD1CS069 ECU in Fiat Ducato / Peugeot Boxer / Citroën Jumper (2021+) and Iveco Daily (2021–2023, before 2024) vehicles. Iveco 2024+ may use a different algorithm and is not listed here.

Producer Controller type HW no. OEM SW no. Car brand Model Engine Year
Bosch MD1CS069 0281037189 46350216 10SW079536
10SW083305
10SW095339
10SW099230
10SW099311
10SW099595
10SW110463
10SW110472		 Fiat
Peugeot
Citroën		 Ducato
Boxer
Jumper		 2.2 Multijet
2.2 BlueHDi		 2021+
Bosch MD1CS069 0281039009 5802858897
5803266230
5803428628
5803428630
5803690452		 10SW086506
10SW104944		 Iveco Daily 2.3 / 3.0 Multijet 2021–2023
(before 2024)
