Fiat

MJD 8F2, 8F3, 8DF

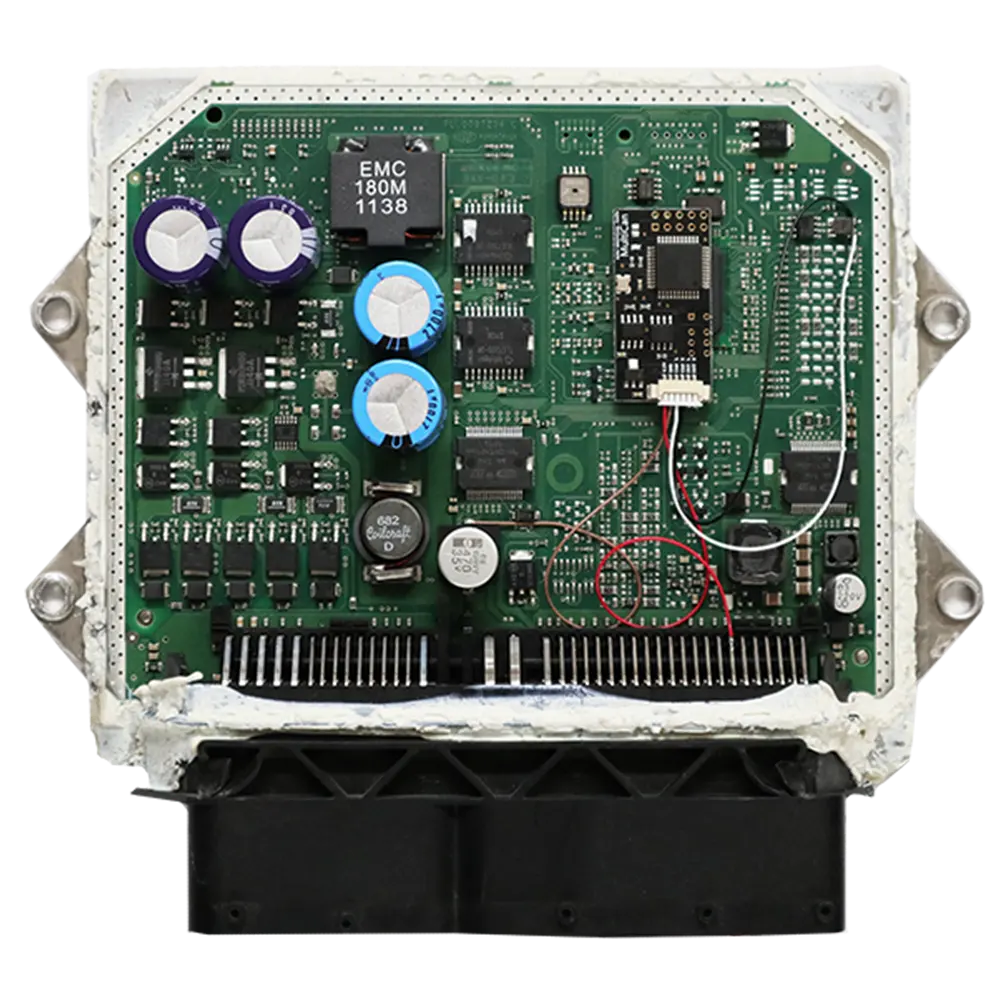

Fiat mjd 8fx ECU unit

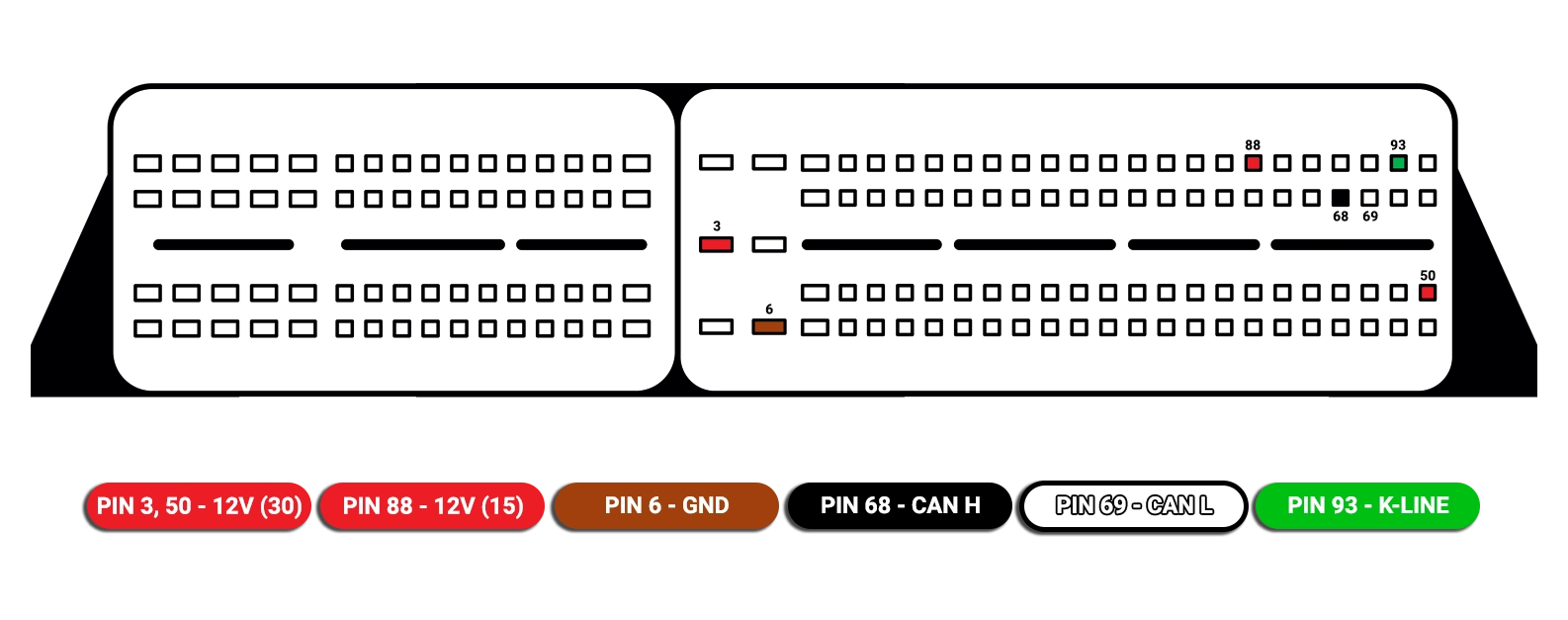

Fiat mjd 8fx ECU connection diagram
Fiat mjd 8fx ECU unit

CONNECTION

Fiat mjd 8fx ECU connection diagram

Upload ECU file

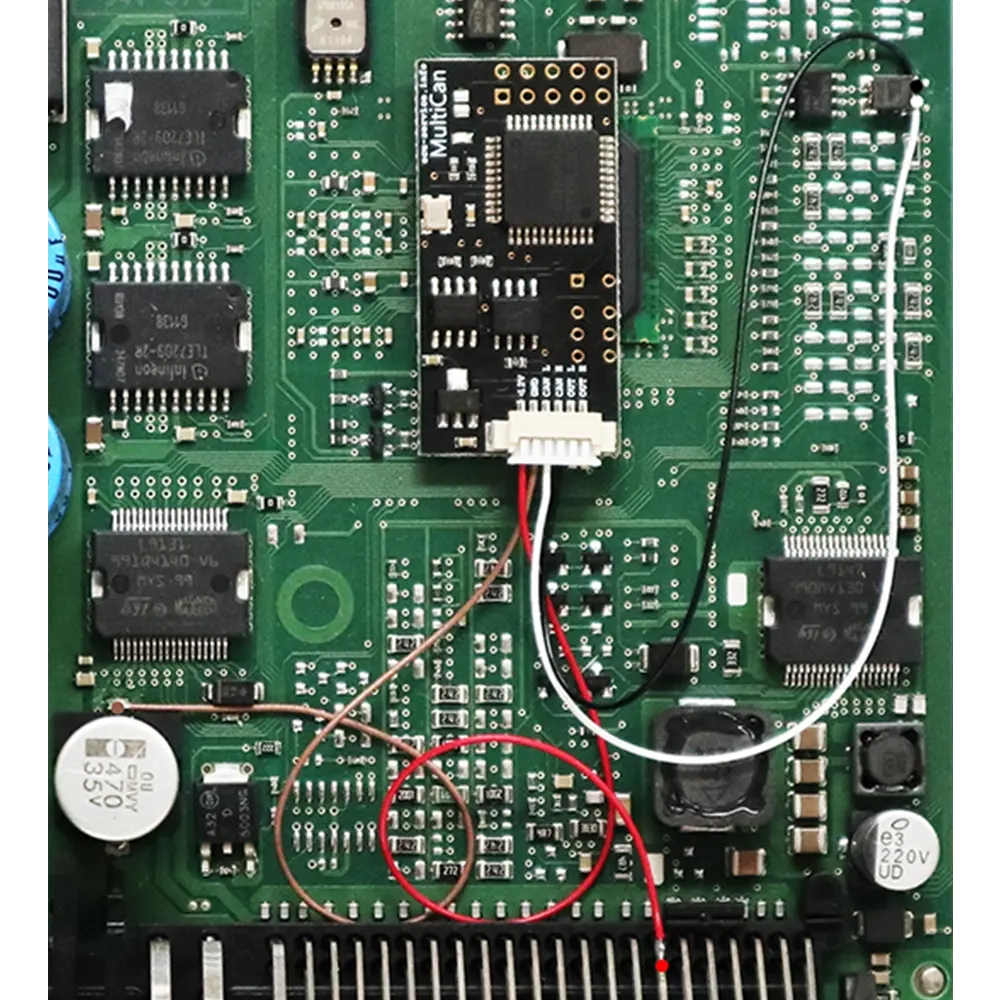

ISK emulator module MultiCan emulator device
BUY NOW
Magneti Marelli MJD 8F2, 8F3, 8DF ECU — HW, OEM, SW numbers | Fiat, Alfa Romeo

The table below lists hardware (HW), OEM and software (SW) numbers for the Magneti Marelli MJD 8F2, 8F3, 8DF ECU in Fiat and Alfa Romeo vehicles.

Producer Controller type HW no. OEM SW no. Car brand Model Engine Year
Magneti MarelliMJD 8F518807589743G485Fiat8F2 G485 Punto
Magneti MarelliMJD 8F518923229743G101Fiat8F2 Punto
Magneti MarelliMJD 8F518923309743A301Alfa Romeo
Fiat		8F2 Mito
Magneti MarelliMJD 8F518968119754B287Fiat8F2 Panda
Magneti MarelliMJD 8F519183649744GD06Fiat
Magneti MarelliMJD 8F519183691942GB20FiatPunto1.3mjet2012
Magneti MarelliMJD 8F552469362442D330FiatDoblo
Magneti MarelliMJD 8F552469511942B241Fiat
Magneti MarelliMJD 8F552492082540B155Fiat8F3
Magneti MarelliMJD 8F552619823042BN04Fiat
