Ford

MD1SC005

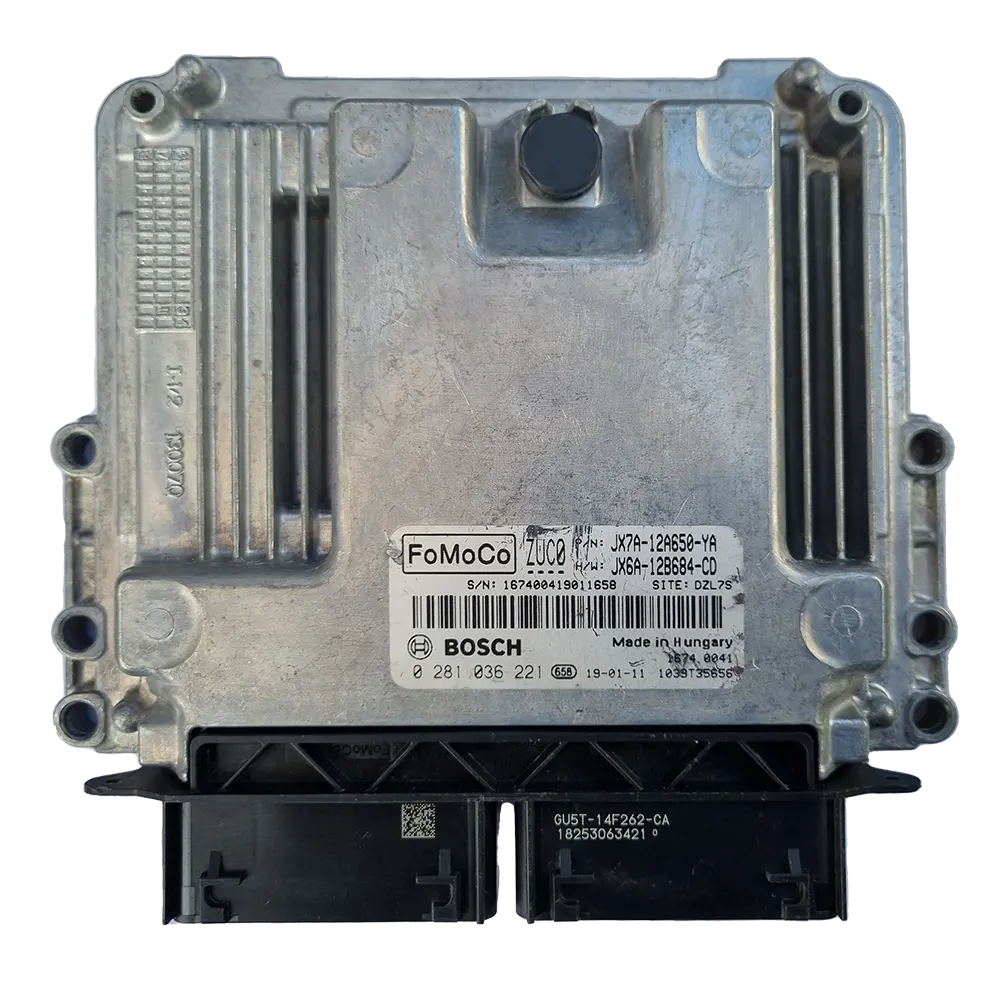

Ford md1sc005 ECU unit

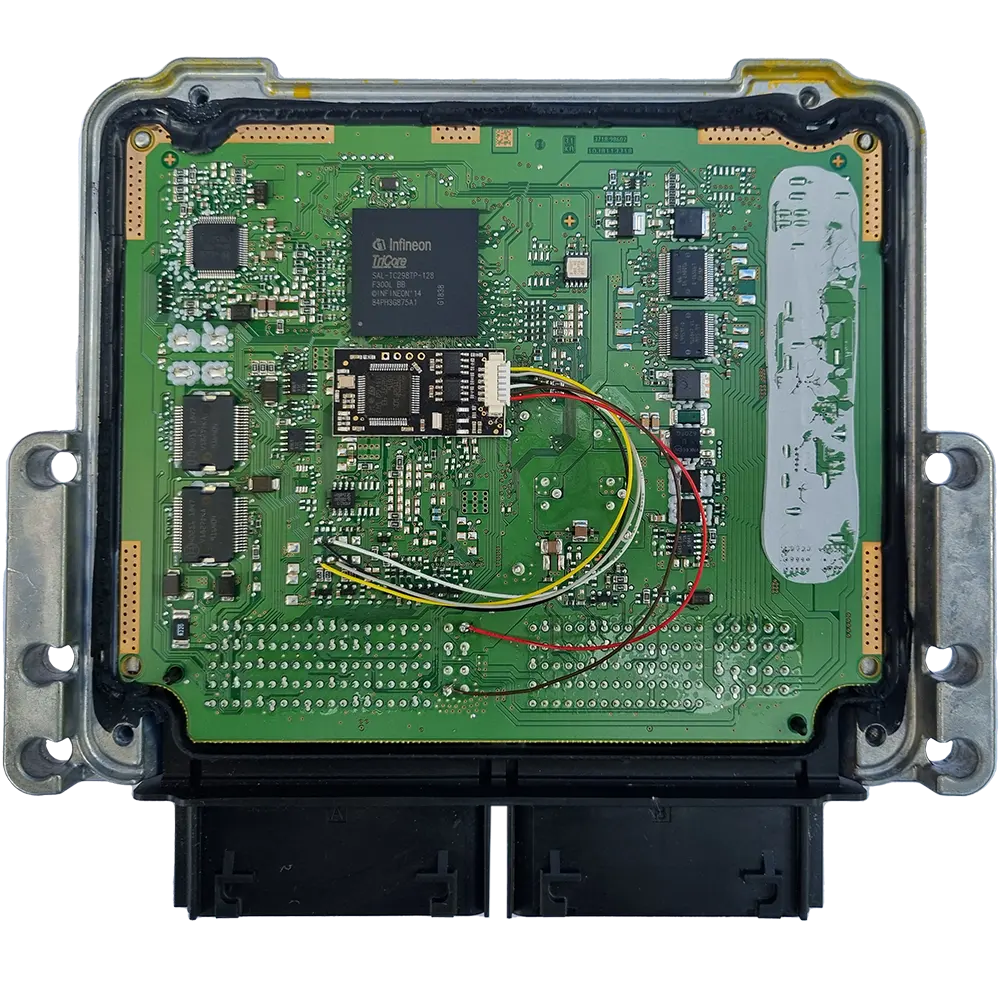

Ford md1sc005 ECU connection diagram

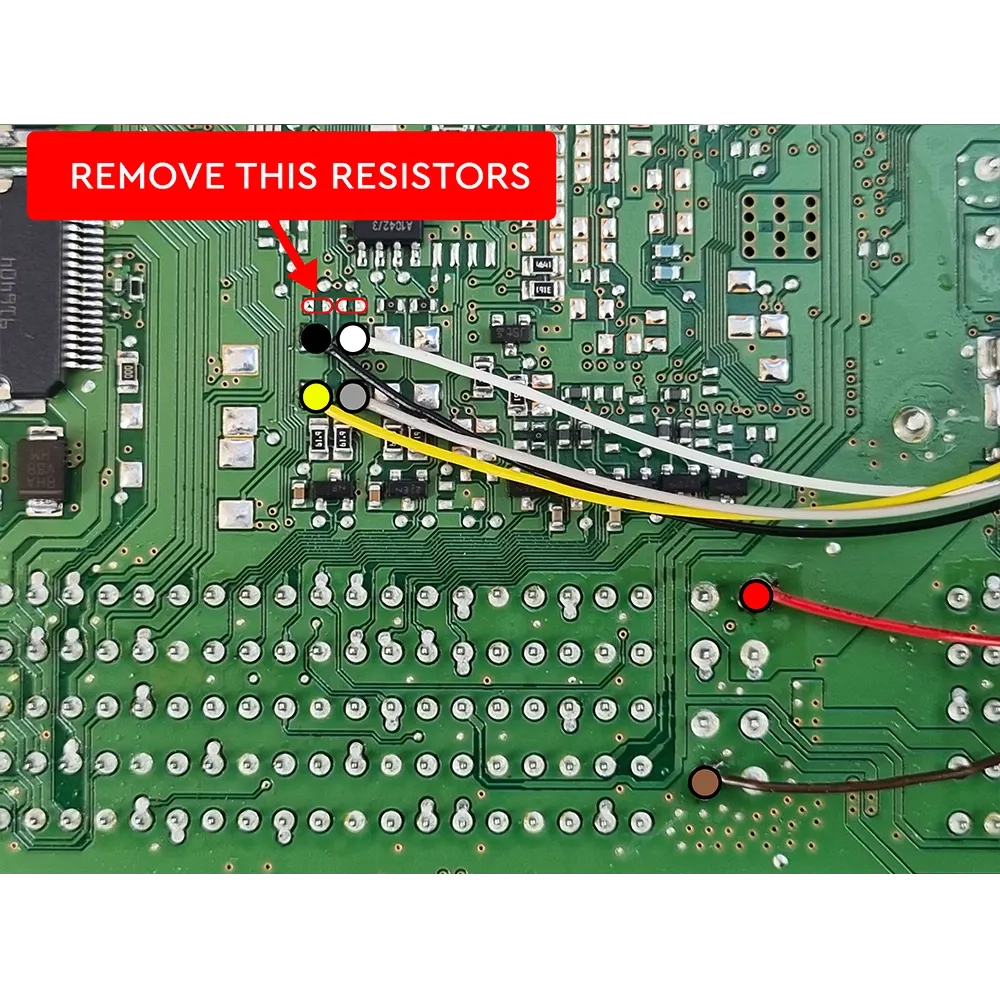

Ford md1sc005 ECU connection diagram
Ford md1sc005 ECU unit

CONNECTION

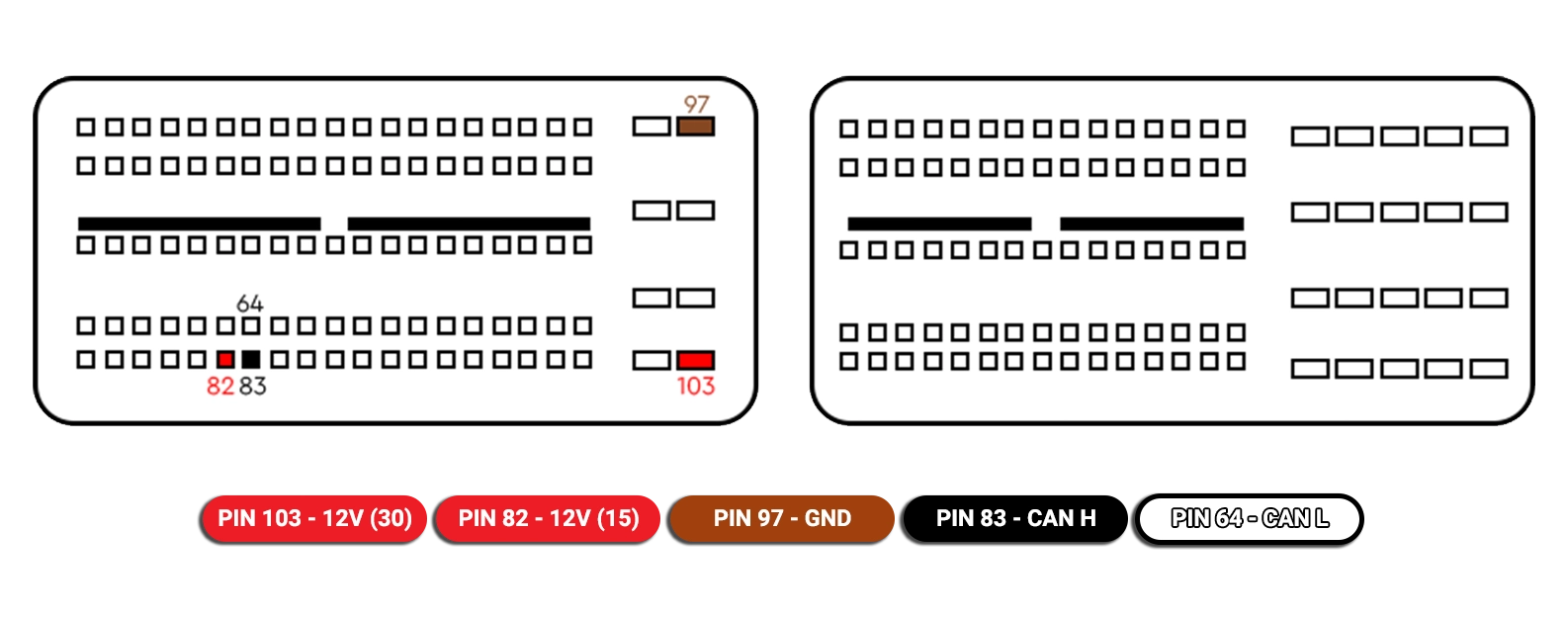

Ford md1sc005 connection plug

Upload ECU file

Ford IMMO emulator module
BUY NOW
Bosch MD1SC005 ECU — HW, OEM, SW numbers | Ford

The table below lists hardware (HW), OEM and software (SW) numbers for the Bosch MD1SC005 ECU in Ford vehicles.

Producer Controller type HW no. OEM SW no. Car brand Model Engine Year
BoschMD1 CS005 Ford02810166941037503435FordMondeo147KW 2.2
BoschMD1 CS005 Ford02810178311037503422
1037513591		Ford
BoschMD1 CS005 Ford02810191721037513206Ford
BoschMD1 CS005 Ford0281019378Ford12C520 Ajv6D X250202KW 3.0d
BoschMD1 CS005 Ford02810199201037513206Ford
BoschMD1 CS005 Ford02810199221037513206
1037527494		FordFocus1.6
BoschMD1 CS005 Ford02810199281037513206
1037527532		FordC1B1 Fiesta1.5
BoschMD1 CS005 Ford02810199411037513206
1037527562		FordC1B1 Fiesta1.5
BoschMD1 CS005 Ford0281030446Ford12C520
BoschMD1 CS005 Ford02810310531037530693Ford14C204 Cv1A T3Jb1.6
BoschMD1 CS005 Ford02810315311037530693FordFiesta
BoschMD1 CS005 Ford0281032515FordFiesta1.5
BoschMD1 CS005 Ford02810326461037556085FordFocus
BoschMD1 CS005 Ford028103272910SW010088Ford3.20
BoschMD1 CS005 Ford02810334721037559213FordKuga1.5
BoschMD1 CS005 Ford028103477410SW021484FordFocus
