Ford

SID 208 CONTINENTAL

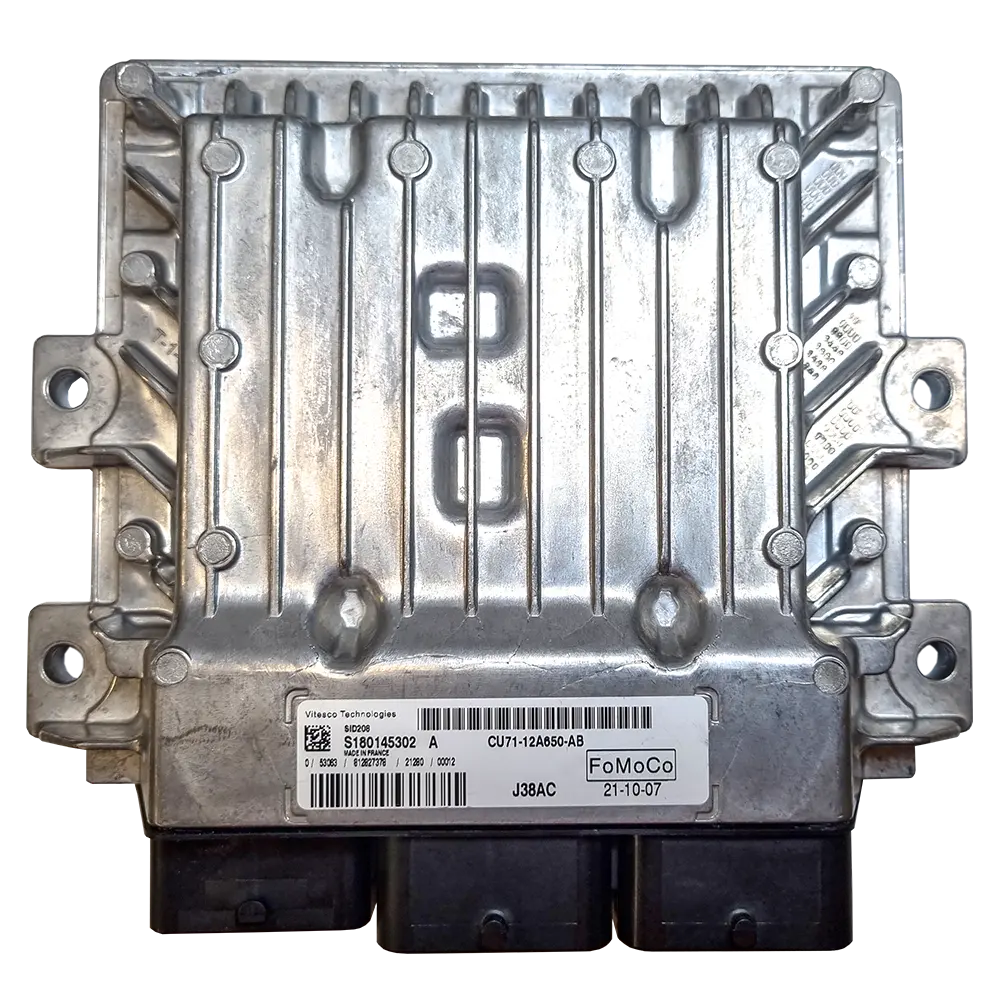

Ford sid 208 ECU unit

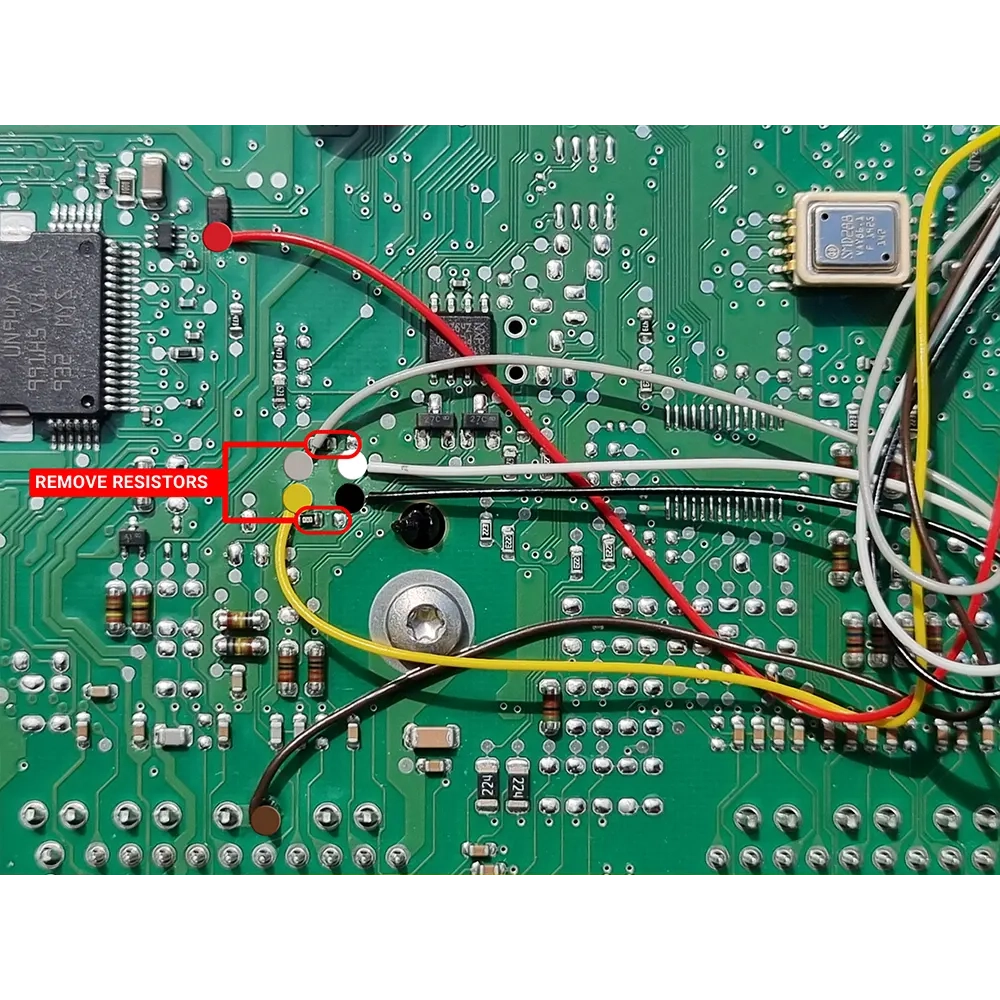

Ford sid 208 ECU connection diagram
Ford sid 208 ECU unit

CONNECTION

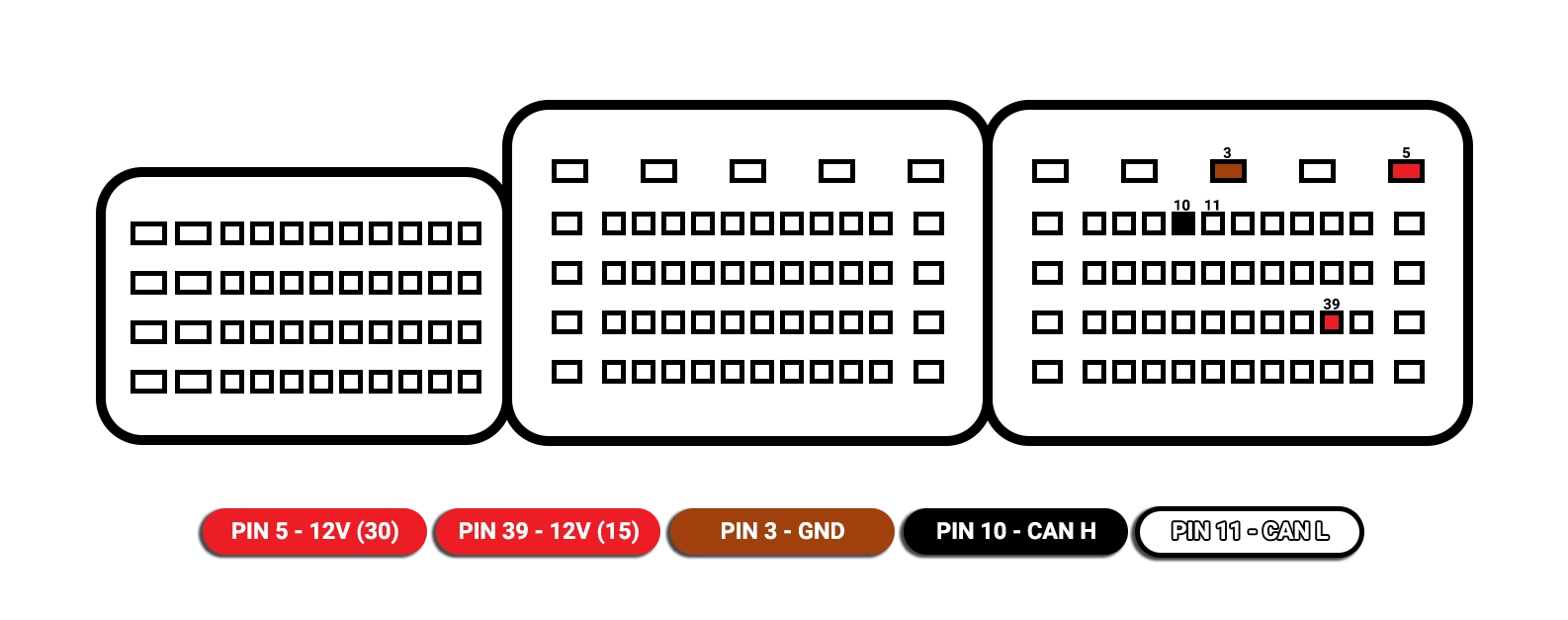

Ford sid 208 connection plug

Upload ECU file

Ford IMMO emulator module
BUY NOW
Continental SID 208 ECU — HW, OEM, SW numbers | Ford

The table below lists hardware (HW), OEM and software (SW) numbers for the Continental SID 208 ECU in Ford vehicles.

Producer Controller type HW no. OEM SW no. Car brand Model Engine Year
ContinentalSID 208 FordA2C83286800DC11-12A650-BC
DC11-12A650-BF		PUMFRQ61B000FordTourneo Custom Transit Transit Custom2.2 TDCi2011-2016
2012-2015
2012-2016
ContinentalSID 208 FordA2C86287303DC11-12A650-BC
DC11-12A650-BF		PUMFRQ61B000FordTourneo Custom Transit Transit Custom2.2 TDCi2011-2016
2012-2015
2012-2016
ContinentalSID 208 FordS180145001BCC11-12A650-AB
CC11-12A650-AC
CC11-12A650-CAK		PUMFRQ61B200FordTourneo Custom Transit Transit Custom2.2 TDCi2011-2016
2012-2015
2012-2016
ContinentalSID 208 FordS180145002ACC11-12A650-AB
CC11-12A650-AC
CC11-12A650-CAK		PUMFRQ619500
PUMFRQ61A700
PUMFRQ61B200		FordTourneo Custom Transit Transit Custom2.2 TDCi2011-2016
2012-2015
2012-2016
ContinentalSID 208 FordS180145101BCC11-12A650-BC
CC11-12A650-CAK		PUMFRQ61B200FordTourneo Custom Transit Transit Custom2.2 TDCi2011-2016
2012-2015
2012-2016
ContinentalSID 208 FordS180145302ABK2A-12A650-AC
CC11-12A650-AC
CC11-12A650-CAK
CU71-12A650-AB		PUMFRQ61B200
PUMFRQ61C800		FordTourneo Custom Transit Transit Custom2.2 TDCi2011-2016
2012-2015
2012-2016
ContinentalSID 208 FordS180146151ABK2A-12A650-AC
BK2A-12A650-BB
BK31-12A650-CA		PUMFRQ61C600
PUMFRQ61C800		FordTourneo Custom Transit Transit Custom2.2 TDCi2011-2016
2012-2015
2012-2016
ContinentalSID 208 FordS180146201ABK21-12A650-AB
BK21-12A650-AC
BK2A-12A650-AC		PUMFRQ61A700
PUMFRQ61C000
PUMFRQ61C200
PUMFRQ61C600
PUMFRQ61C800		FordTourneo Custom Transit Transit Custom2.2 TDCi2011-2016
2012-2015
2012-2016
ContinentalSID 208 FordS180146202ABK21-12A650-AC
BK2A-12A650-AC
CC11-12A650-AC
CC11-12A650-CAK		PUMFRQ61B200
PUMFRQ61B300
PUMFRQ61C000
PUMFRQ61C200
PUMFRQ61C400
PUMFRQ61C800		FordTourneo Custom Transit Transit Custom2.2 TDCi2011-2016
2012-2015
2012-2016
ContinentalSID 208 FordS180146251ABK2A-12A650-AC
BK31-12A650-BB
BK32-12A650-BB		PUMFRQ61C000
PUMFRQ61C200
PUMFRQ61C400
PUMFRQ61C600
PUMFRQ61C800		FordTourneo Custom Transit Transit Custom2.2 TDCi2011-2016
2012-2015
2012-2016
