PSA

DCM 3.5 DELPHI

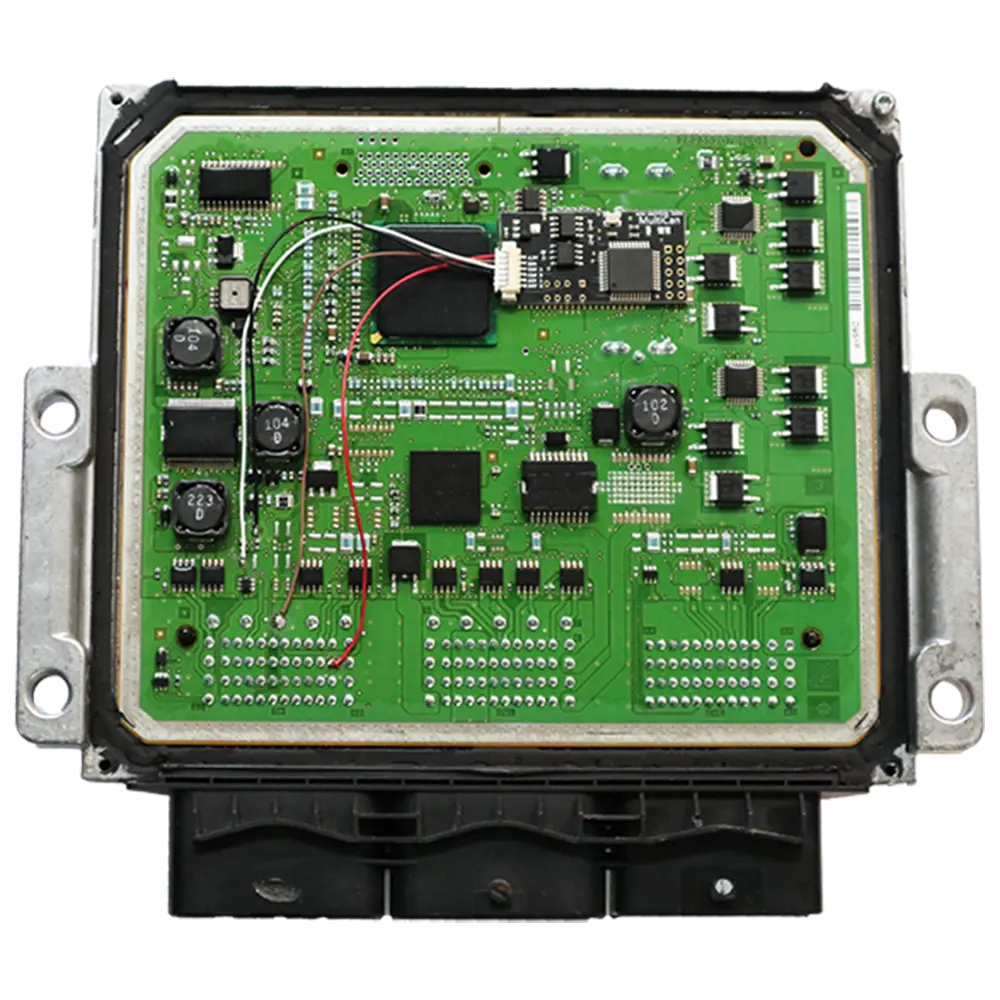

Psa dcm 3 5 ECU unit

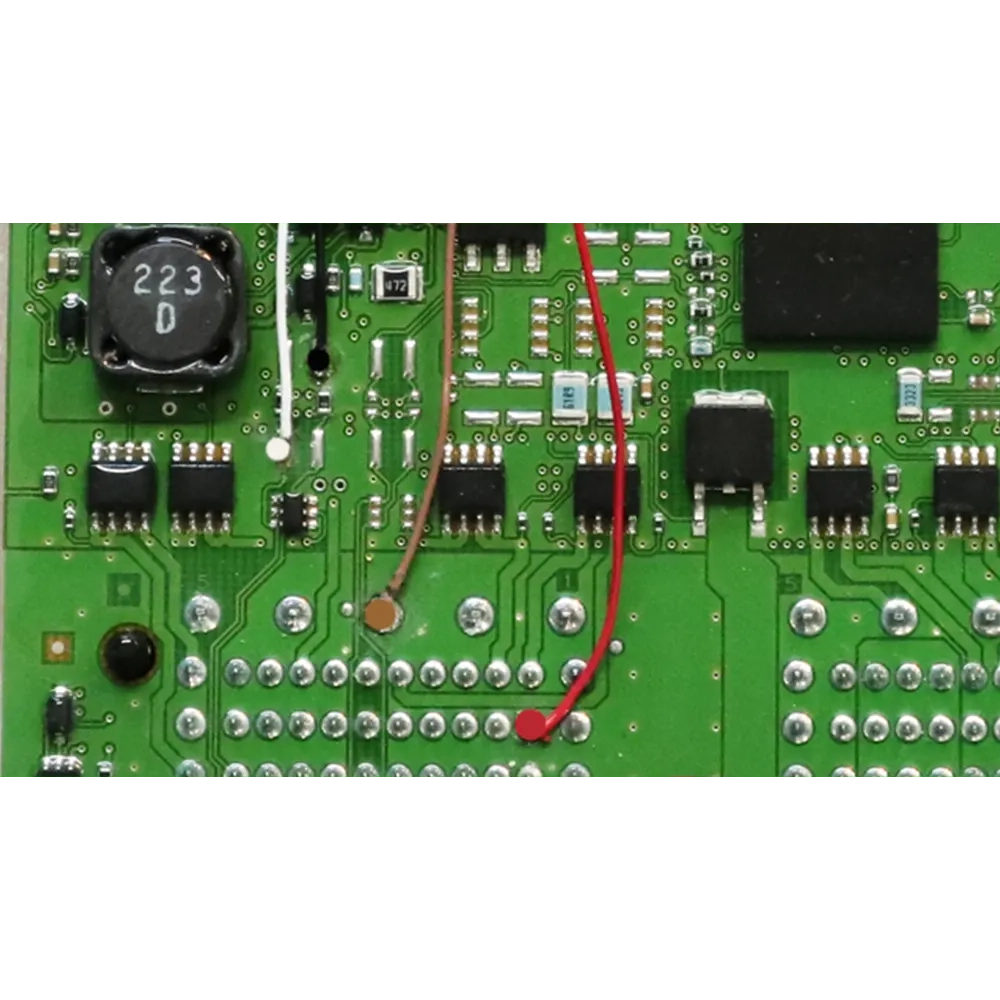

Psa dcm 3 5 ECU connection diagram
Psa dcm 3 5 ECU unit

CONNECTION

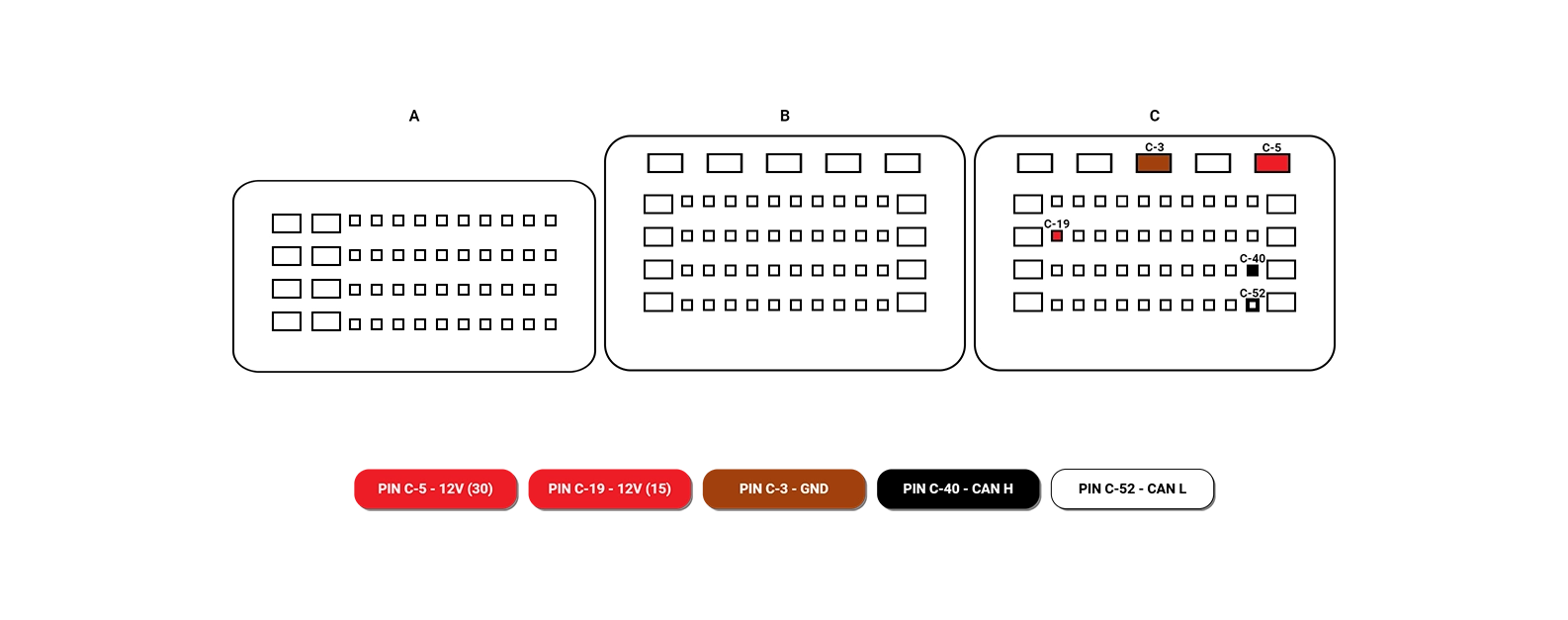

Psa dcm 3 5 connection plug

Upload ECU file

ISK emulator module MultiCan emulator device
BUY NOW
Delphi DCM 3.5 ECU — HW, OEM, SW numbers | Peugeot, Citroen

The table below lists hardware (HW), OEM and software (SW) numbers for the Delphi DCM 3.5 ECU in Peugeot and Citroen vehicles.

Producer Controller type HW no. OEM SW no. Car brand Model Engine Year
DelphiDCM 3 59666912580Peugeot30082.0 HDI 16V2012
DelphiDCM 3 59667082380CitroenDS52.0 HDI 16V2012-2013
DelphiDCM 3 59667083880Peugeot50082.0 HDI 16V2011
DelphiDCM 3 59667175380Peugeot5082.0 HDI 16V2013
DelphiDCM 3 59676860180CitroenDS42.0 HDI 16V2011-2014
DelphiDCM 3 59677563880CitroenC4 Picasso2.0 HDI 16V2012
DelphiDCM 3 59801556080CitroenDS42.0 HDI 16V2011-2014
DelphiDCM 3 59804184080CitroenDS42.0 HDI 16V2011-2014
DelphiDCM 3 59805240080Peugeot5082.0 HDI 16V2013
DelphiDCM 3 59806127380CitroenDS52.0 HDI 16V2012-2013
