PSA

DCM 6.2C DELPHI

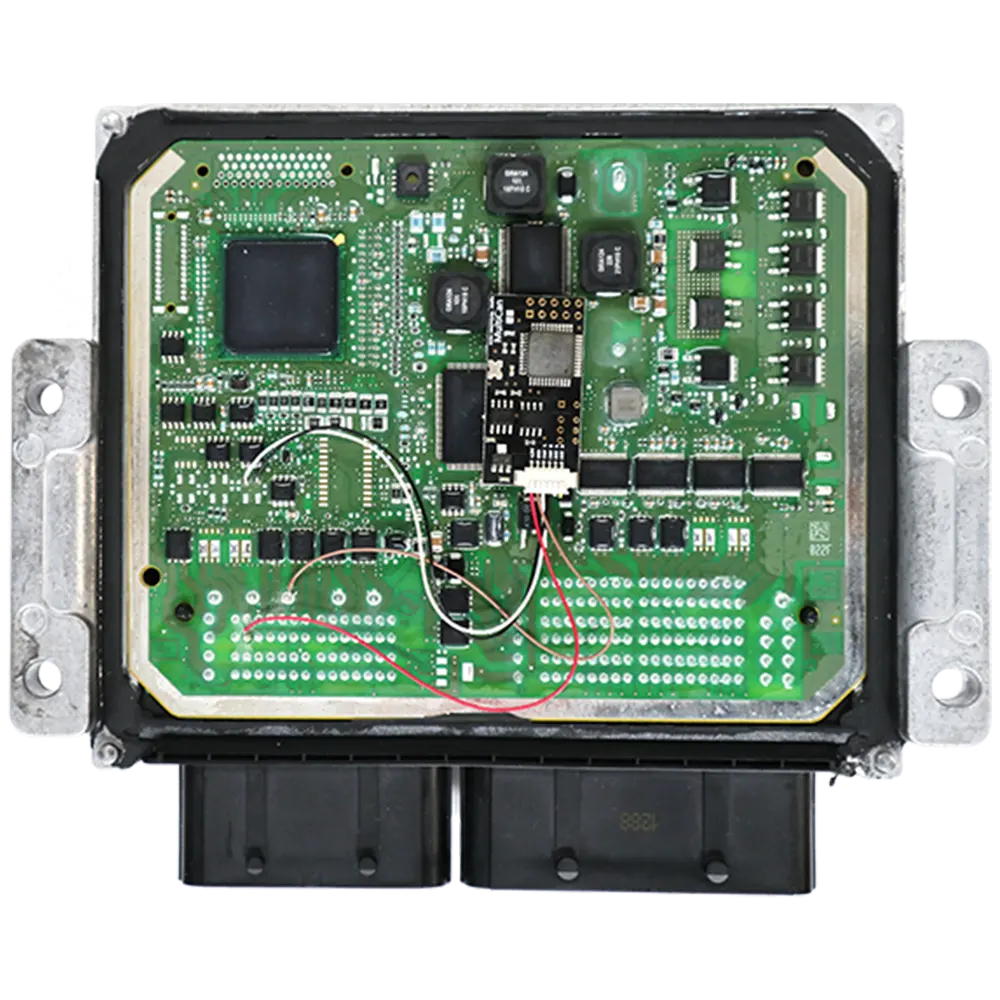

Psa dcm 6 2 c delphi ECU unit

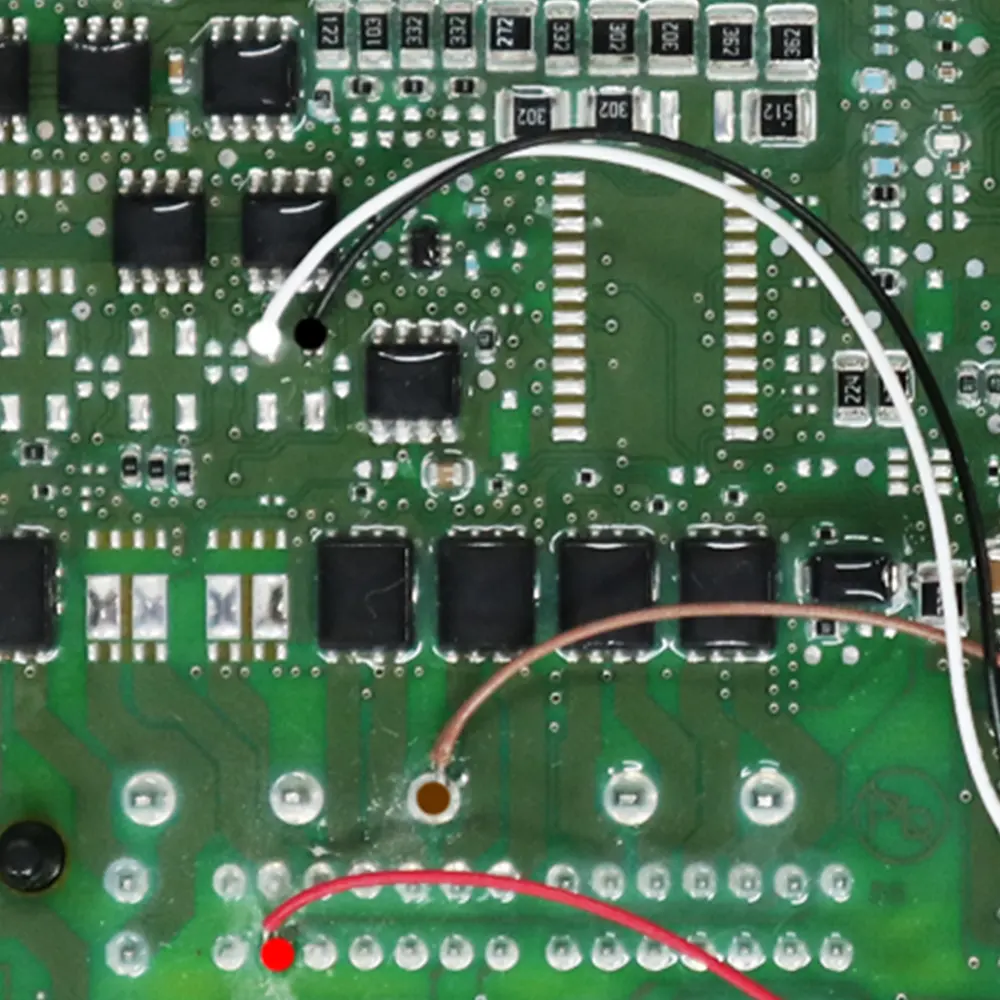

Psa dcm 6 2 c delphi ECU connection diagram
Psa dcm 6 2 c delphi ECU unit

CONNECTION

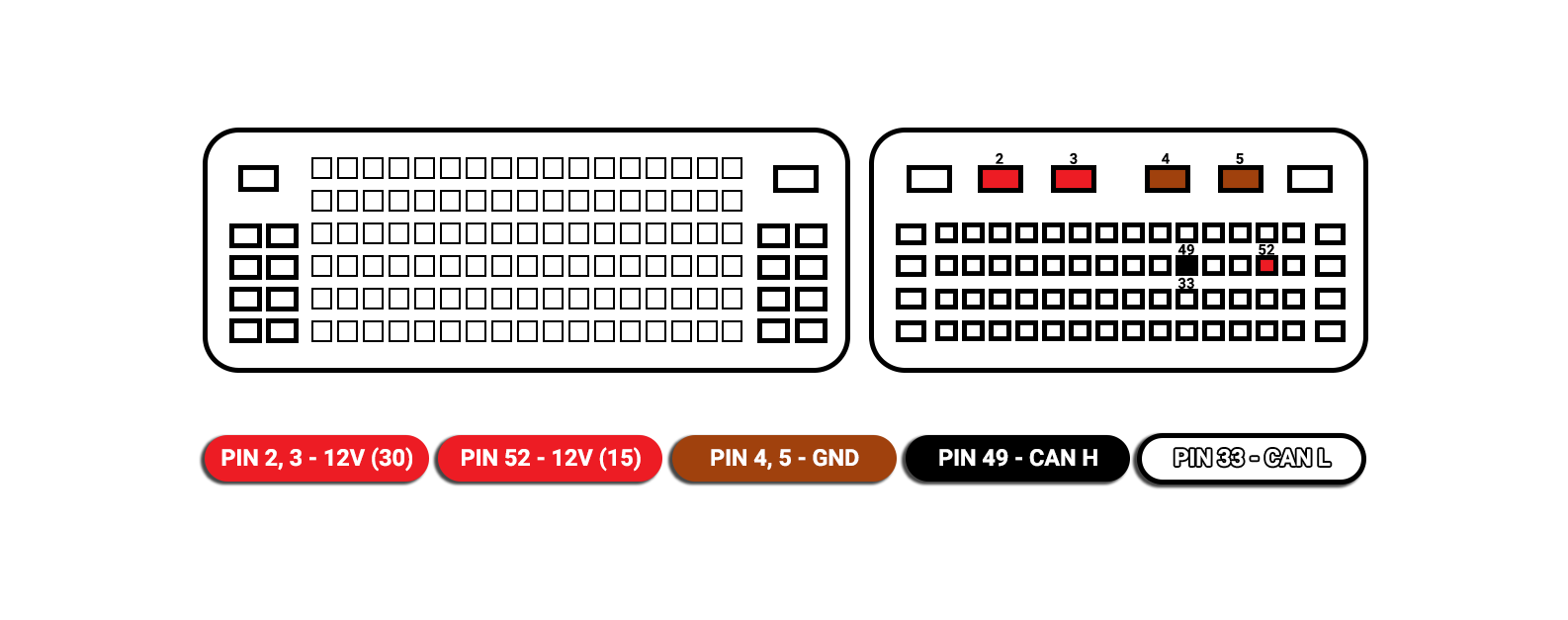

Psa dcm 6 2 c delphi connection plug

Upload ECU file

This solution works only with Fiat CAN and MultiCan emulators. It does not work with PSA CAN.

ISK emulator module MultiCan emulator device
BUY NOW
Delphi DCM 6.2C ECU — HW, OEM, SW numbers | Peugeot, Citroen

The table below lists hardware (HW), OEM and software (SW) numbers for the Delphi DCM 6.2C ECU in Peugeot and Citroen vehicles.

Producer Controller type HW no. OEM SW no. Car brand Model Engine Year
DelphiDCM 6 2 C9692365980PeugeotBoxer III2.0 HDI2017
DelphiDCM 6 2 C9692366180CitroenJumper III2.0 HDI2017
DelphiDCM 6 2 C98094477809692274280
9692365980
9692366180		9692365880
9692895380
9693292280
9693427980
9887632222
9888888876		CitroenJumper III2.0 HDI2017
