PSA

SID 804 SIEMENS

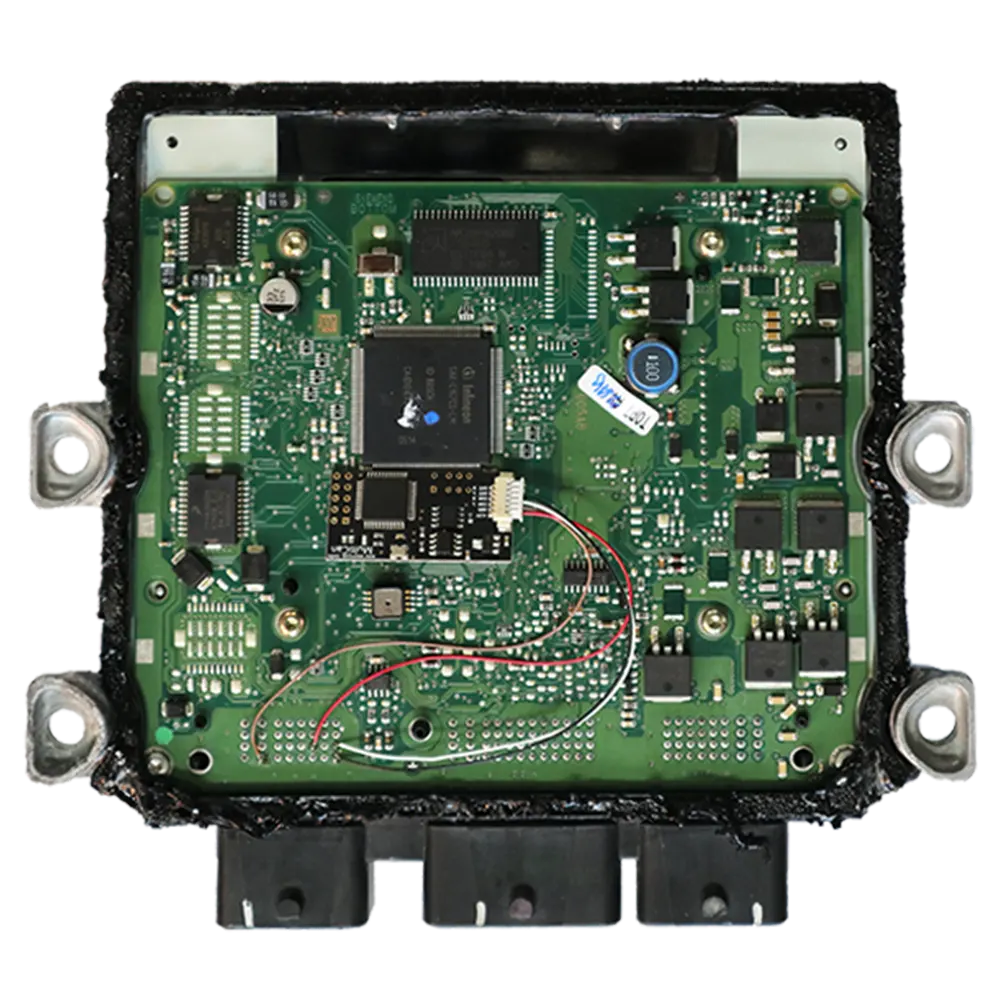

Psa sid 804 ECU unit

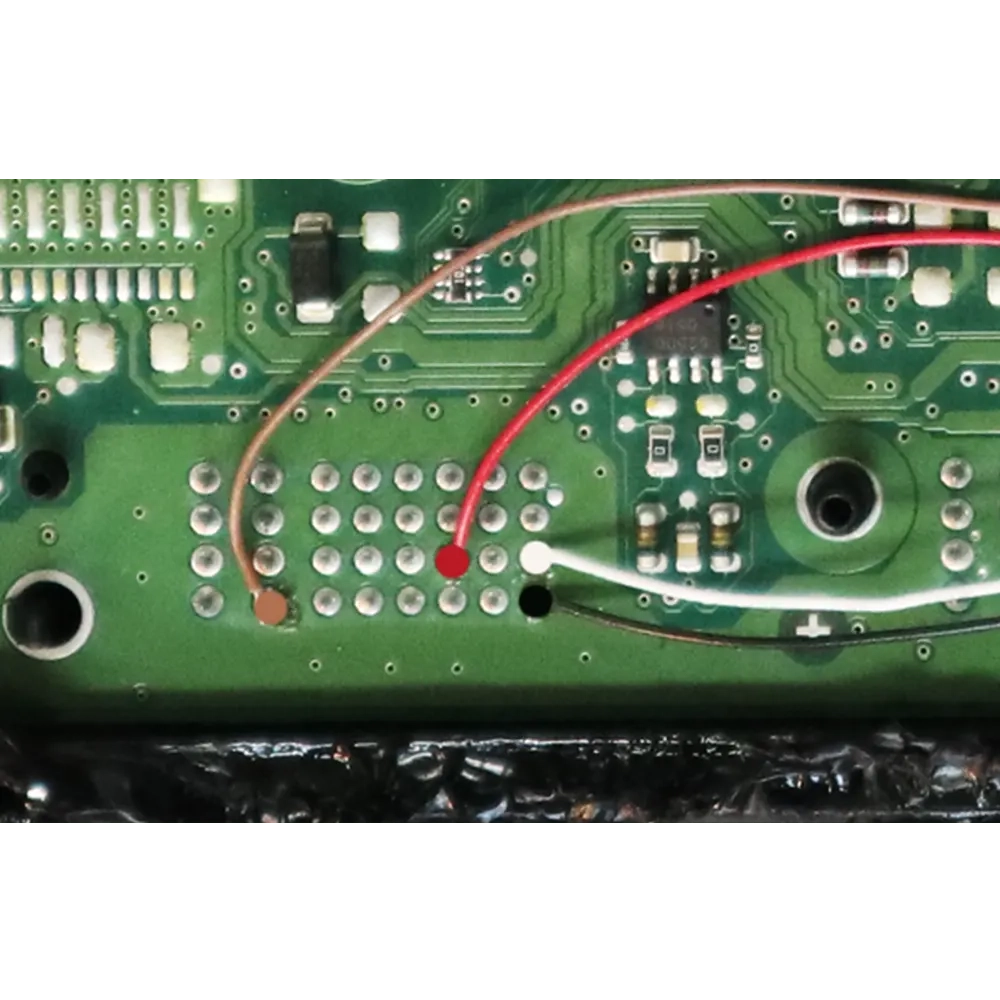

Psa sid 804 ECU connection diagram
Psa sid 804 ECU unit

CONNECTION

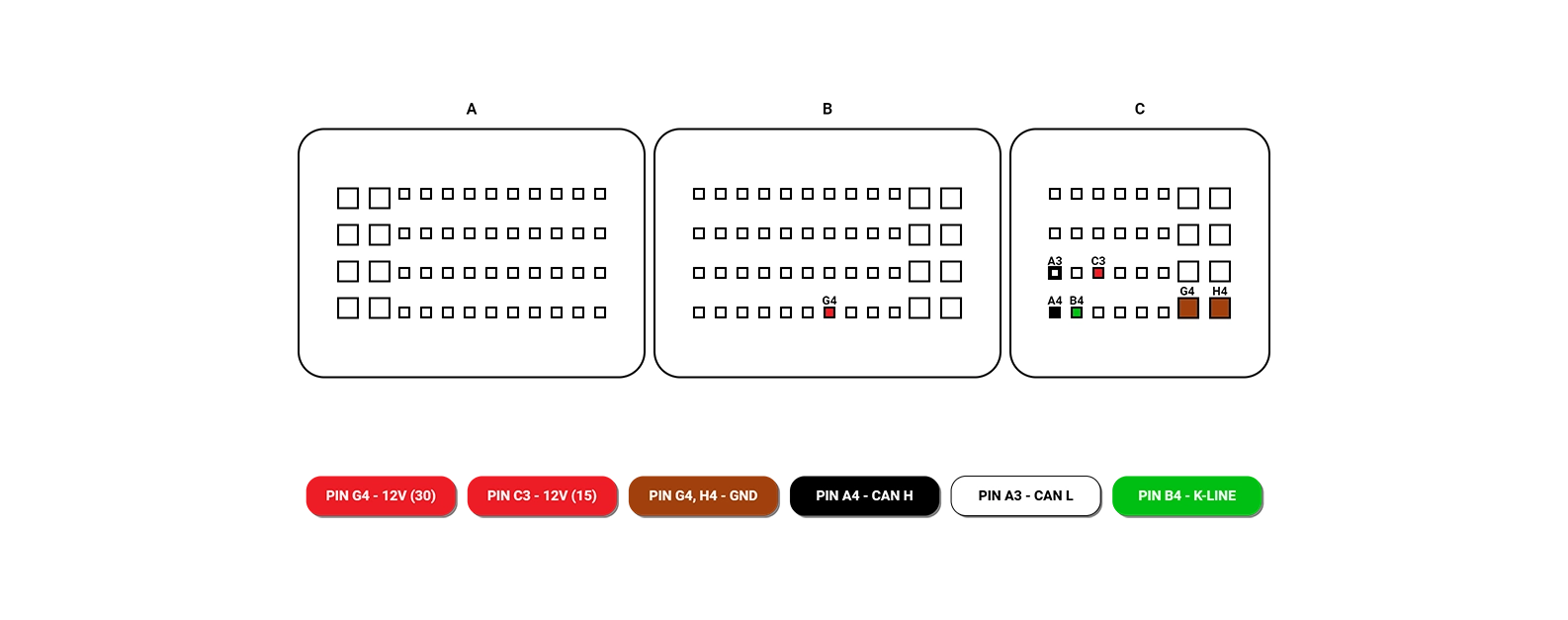

Psa sid 804 connection plug

Upload ECU file

ISK emulator module MultiCan emulator device
BUY NOW
Siemens SID 804 ECU — HW, OEM, SW numbers | Citroen, Peugeot

The table below lists hardware (HW), OEM and software (SW) numbers for the Siemens SID 804 ECU in Citroen and Peugeot vehicles.

Producer Controller type HW no. OEM SW no. Car brand Model Engine Year
SiemensSID 8045WS20112B-T9653447480
PN16162600000		CitroenC31.4 HDI2007-2008
SiemensSID 8045WS40068B-T9653447480
PN16162600000		CitroenC31.4 HDI2007-2008
SiemensSID 8045WS40068C-T9653447380
PN16162600000		CitroenC21.4 HDI2003-2010
SiemensSID 8045WS40075D-T9659317280Peugeot10071.4 HDI2006-2009
SiemensSID 8045WS40110C-T96517828999653447480
PN16162600000		CitroenC31.4 HDI2007-2008
SiemensSID 8045WS40110E-TPN16162600000CitroenC31.4 HDI2007-2008
SiemensSID 8045WS40111C-T9653447380
PN16162600000		CitroenC31.4 HDI2007-2008
SiemensSID 8045WS40111E-T9653447380
PN16162600000		CitroenC21.4 HDI2003-2010
SiemensSID 8045WS40115C-T9653447380
PN16162600000		CitroenC21.4 HDI2003-2010
SiemensSID 8045WS40117D-T9653447380
PN16162600000		CitroenC21.4 HDI2003-2010
SiemensSID 8045WS40171C-T96567186999655939780
PN16167100000		Peugeot10071.4 HDI2006-2009
SiemensSID 8045WS40172C-TCitroenJumper3.0 HDI2007
SiemensSID 8045WS40174B-T9653447380
PN16162600000		CitroenC21.4 HDI2003-2010
SiemensSID 8045WS40175D-T96567187999659317280Peugeot10071.4 HDI2006-2009
SiemensSID 8045WS40176B-T9653447480
PN16162600000		CitroenC31.4 HDI2007-2008
