PSA

SID 806 SIEMENS

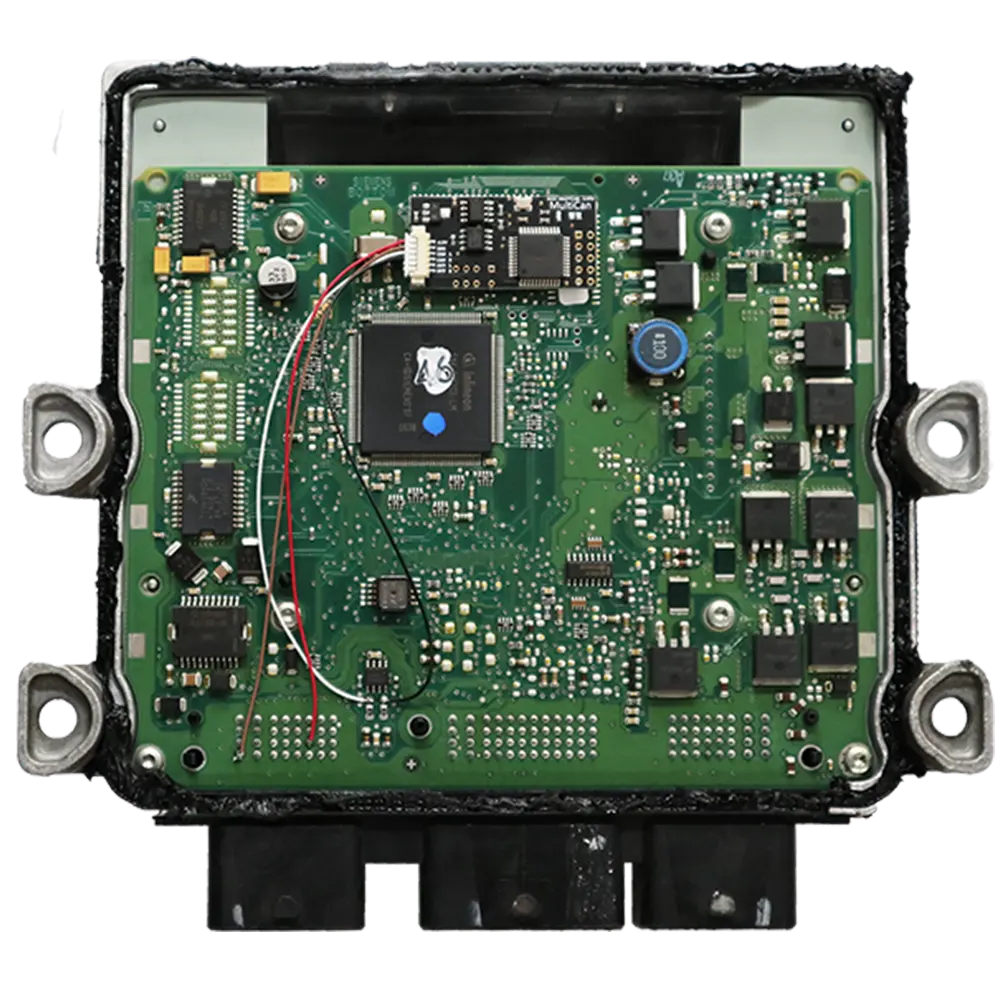

Psa sid 806 ECU unit

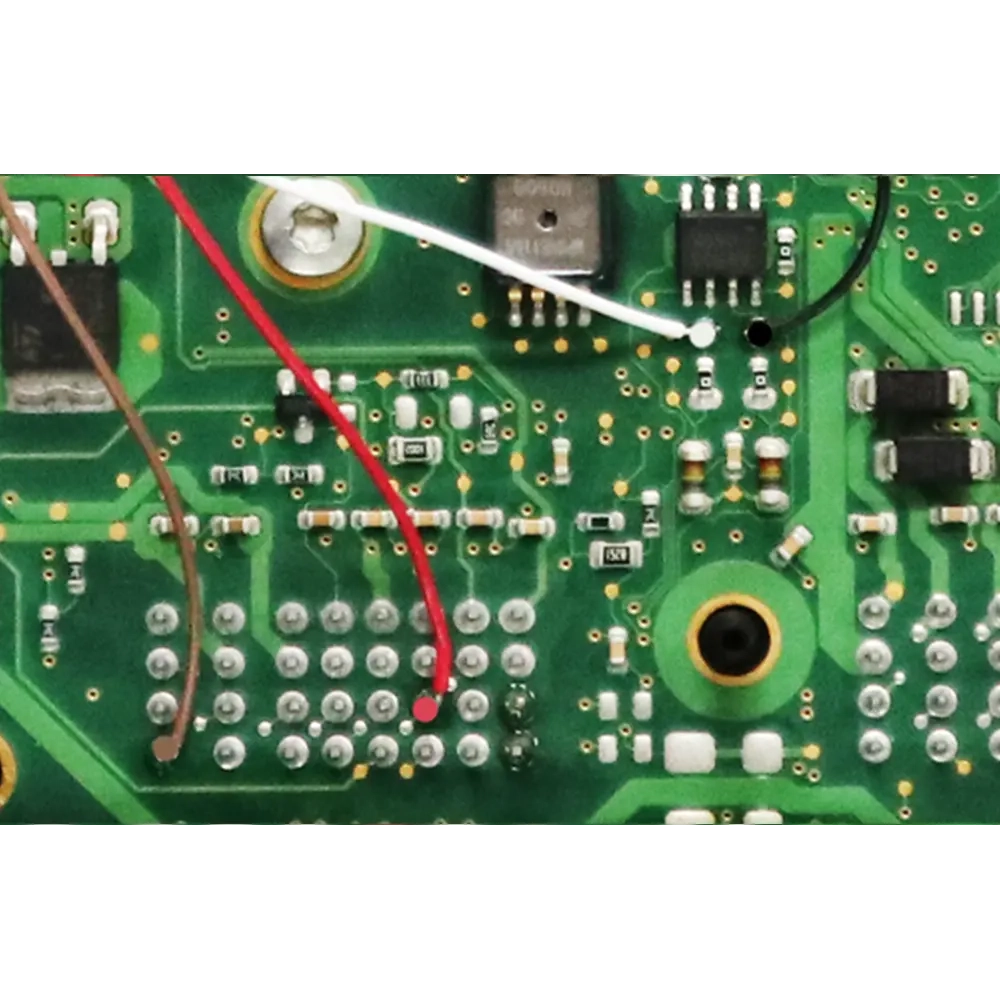

Psa sid 806 ECU connection diagram
Psa sid 806 ECU unit

CONNECTION

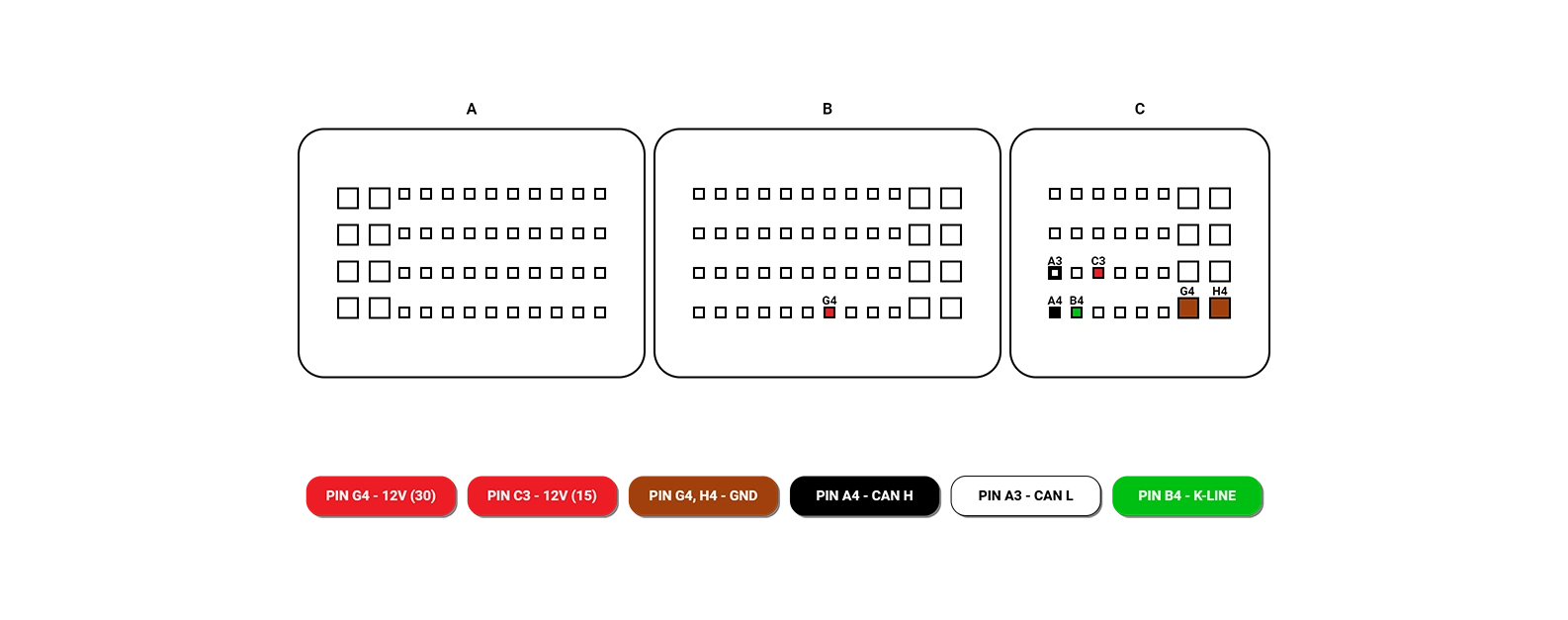

Psa sid 806 connection plug

Upload ECU file

ISK emulator module MultiCan emulator device
BUY NOW
Siemens SID 806 ECU — HW, OEM, SW numbers | Citroen, Peugeot

The table below lists hardware (HW), OEM and software (SW) numbers for the Siemens SID 806 ECU in Citroen and Peugeot vehicles.

Producer Controller type HW no. OEM SW no. Car brand Model Engine Year
SiemensSID 8065WS40285C-T9653451880
9660300280
9661095980
PN27241000000
PN27251000000		CitroenC2 C31.4 HDI2006-2009
2006-2010
SiemensSID 8065WS40285E-T96584858999653451880
9663483180
PN27251000000		CitroenC2 C3 Picasso1.4 HDI2006-2009
2008-2010
SiemensSID 8065WS40572A-TPN27250000000Peugeot10071.4 HDI2007-2009
SiemensSID 8065WS40572B-T9653451880
9663483180
PN27251000000		Peugeot10071.4 HDI2007-2009
