Renault

DCM 1.2 DELPHI

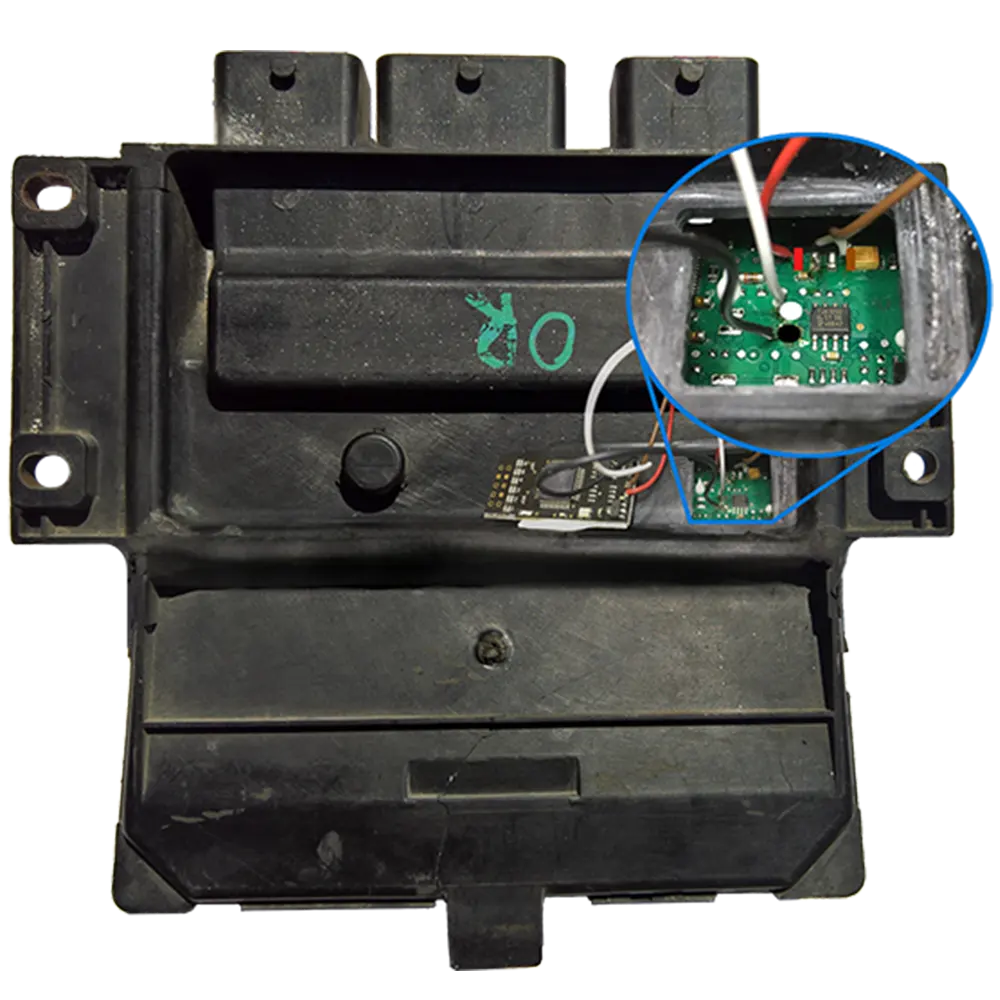

Renault dcm 1 2 ECU unit

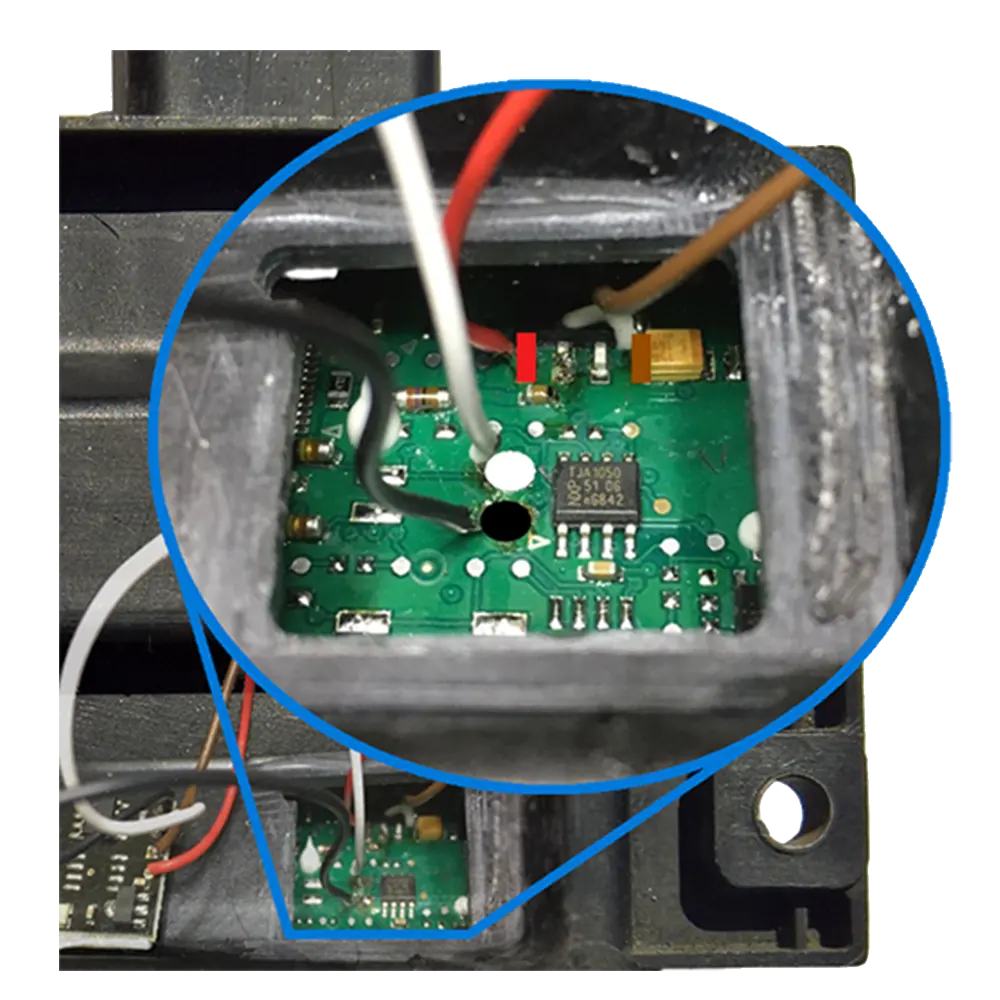

Renault dcm 1 2 ECU connection diagram
Renault dcm 1 2 ECU unit

CONNECTION

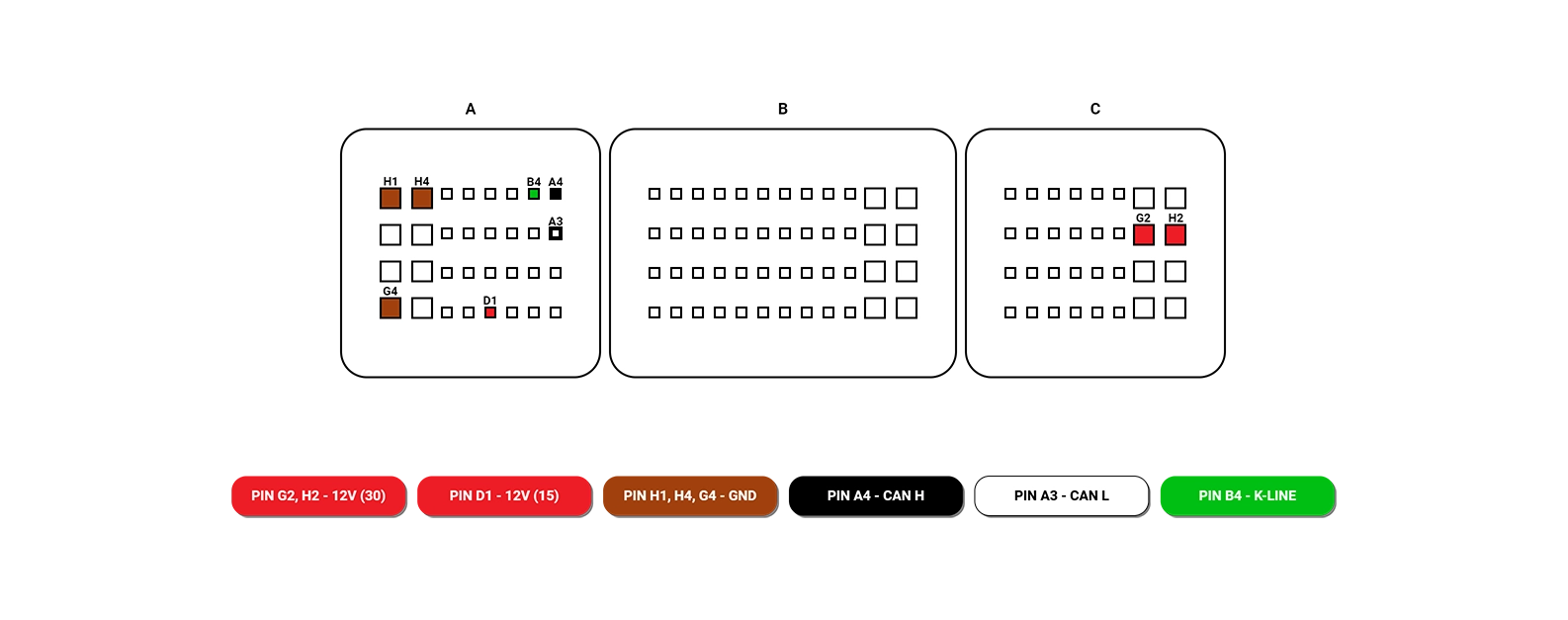

Renault dcm 1 2 connection plug

Upload ECU file

MultiCan emulator device ISK emulator module
BUY NOW
Delphi DCM 1.2 ECU — HW, OEM, SW numbers | Renault, Dacia

The table below lists hardware (HW), OEM and software (SW) numbers for the Delphi DCM 1.2 ECU in Renault and Dacia vehicles.

Producer Controller type HW no. OEM SW no. Car brand Model Engine Year
DelphiDCM 1 282003130768200582518RenaultKangoo II1.5 dCi2007-2010
DelphiDCM 1 28200331477Renault
DelphiDCM 1 282003989348200449080RenaultModus1.5 dCi2005
DelphiDCM 1 282003990388200513163RenaultClio III1.5 dCi2006
DelphiDCM 1 282005130588200603070RenaultClio II1.5 dCi2004
DelphiDCM 1 282005130768200582518RenaultKangoo1.5 dCi2007
DelphiDCM 1 282009115608200909666RenaultKangoo II1.5 dCi2007-2010
DelphiDCM 1 282009115628200582518RenaultKangoo II1.5 dCi2007-2010
DelphiDCM 1 282010021068201127198DaciaDuster1.5 dCi2013
