Renault

DCM 3.4 DELPHI

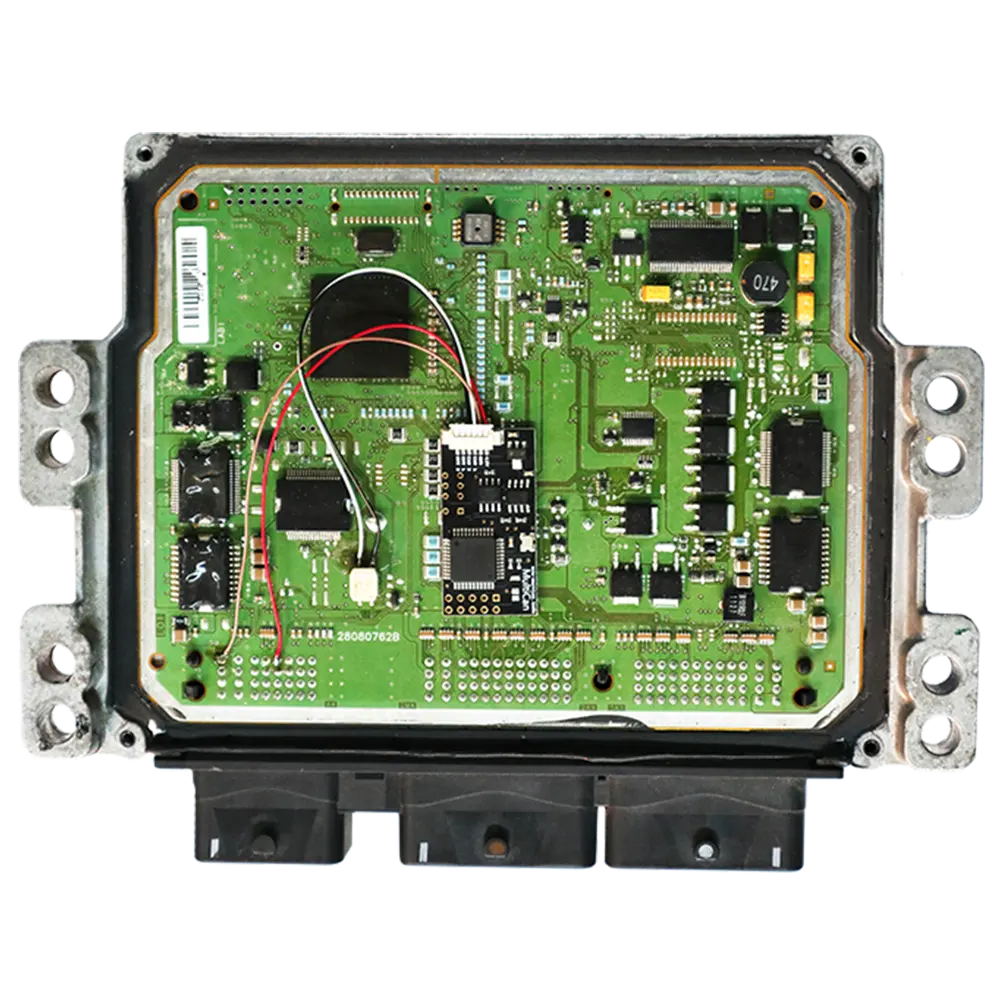

Renault dcm 3 4 ECU unit

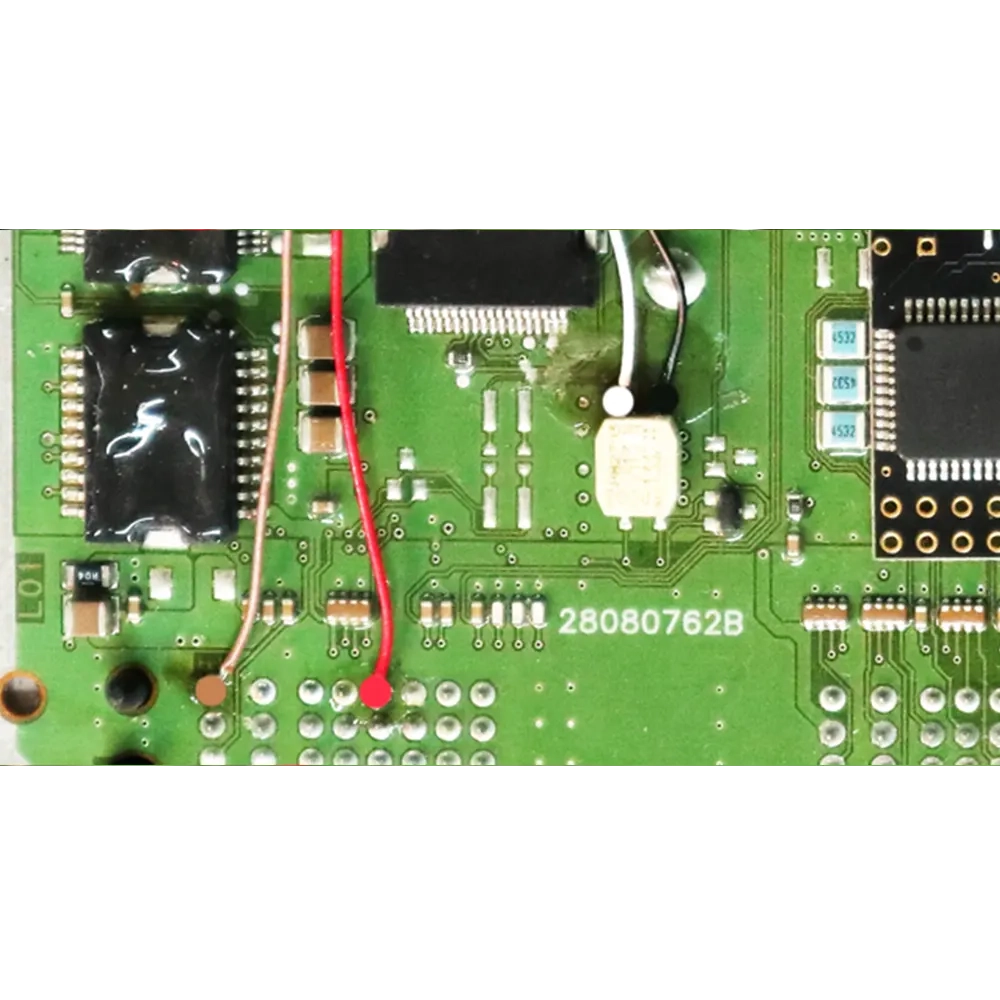

Renault dcm 3 4 ECU connection diagram
Renault dcm 3 4 ECU unit

CONNECTION

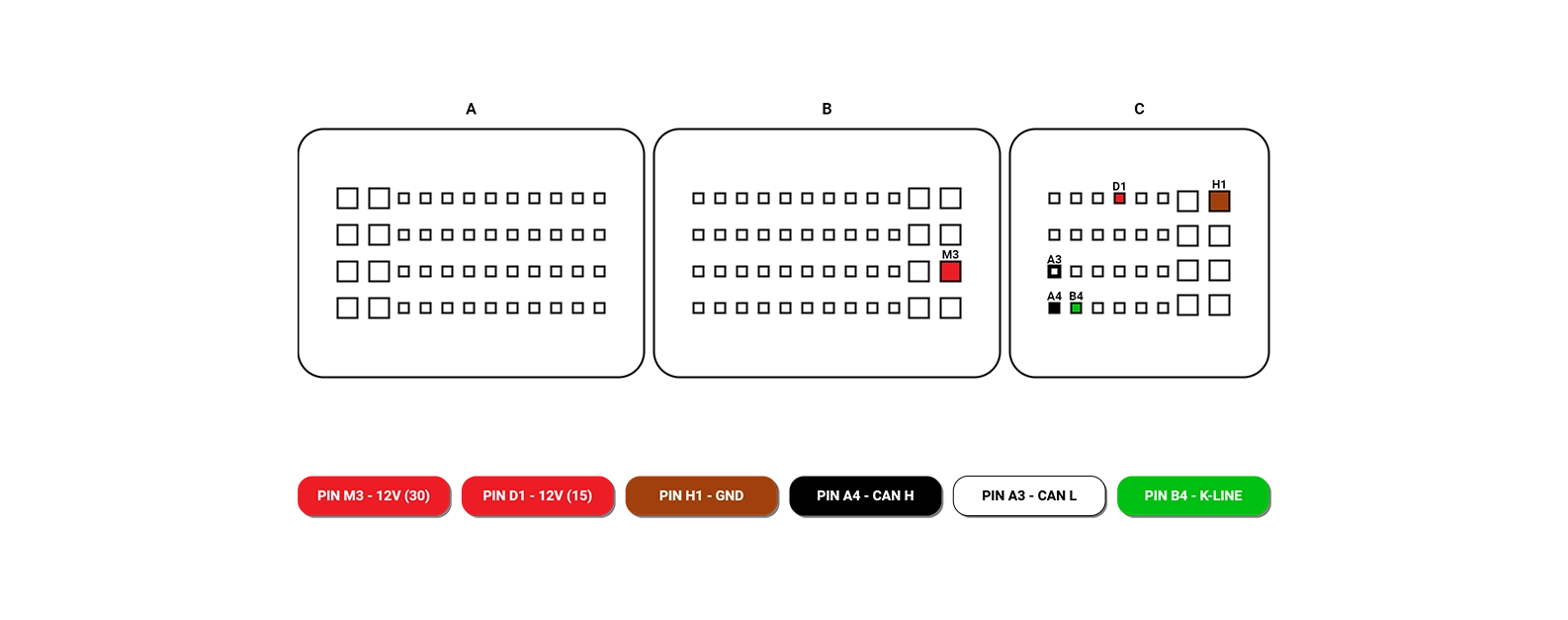

Renault dcm 3 4 ECU connection diagram

Upload ECU file

MultiCan emulator device ISK emulator module
BUY NOW
Delphi DCM 3.4 ECU — HW, OEM, SW numbers | Renault, Dacia

The table below lists hardware (HW), OEM and software (SW) numbers for the Delphi DCM 3.4 ECU in Renault and Dacia vehicles.

Producer Controller type HW no. OEM SW no. Car brand Model Engine Year
DelphiDCM 3 4237100120R237100422R
237100943R		RenaultMegane III1.5 dCi2009-2012
DelphiDCM 3 4237100121R237100425RRenaultMegane III1.5 dCi2009-2012
DelphiDCM 3 4237100703R237101862RDaciaDuster1.5 dCi2011
DelphiDCM 3 4237100875R237101293RRenaultClio III1.5 dCi2012
DelphiDCM 3 4237100914R237101715RRenaultMegane III1.5 dCi2009-2012
DelphiDCM 3 4237101989R237101990RRenaultClio III1.5 dCi2012
DelphiDCM 3 4237102575R237104028RRenaultCaptur1.5 dCi2013
