Renault

SID 301 SIEMENS

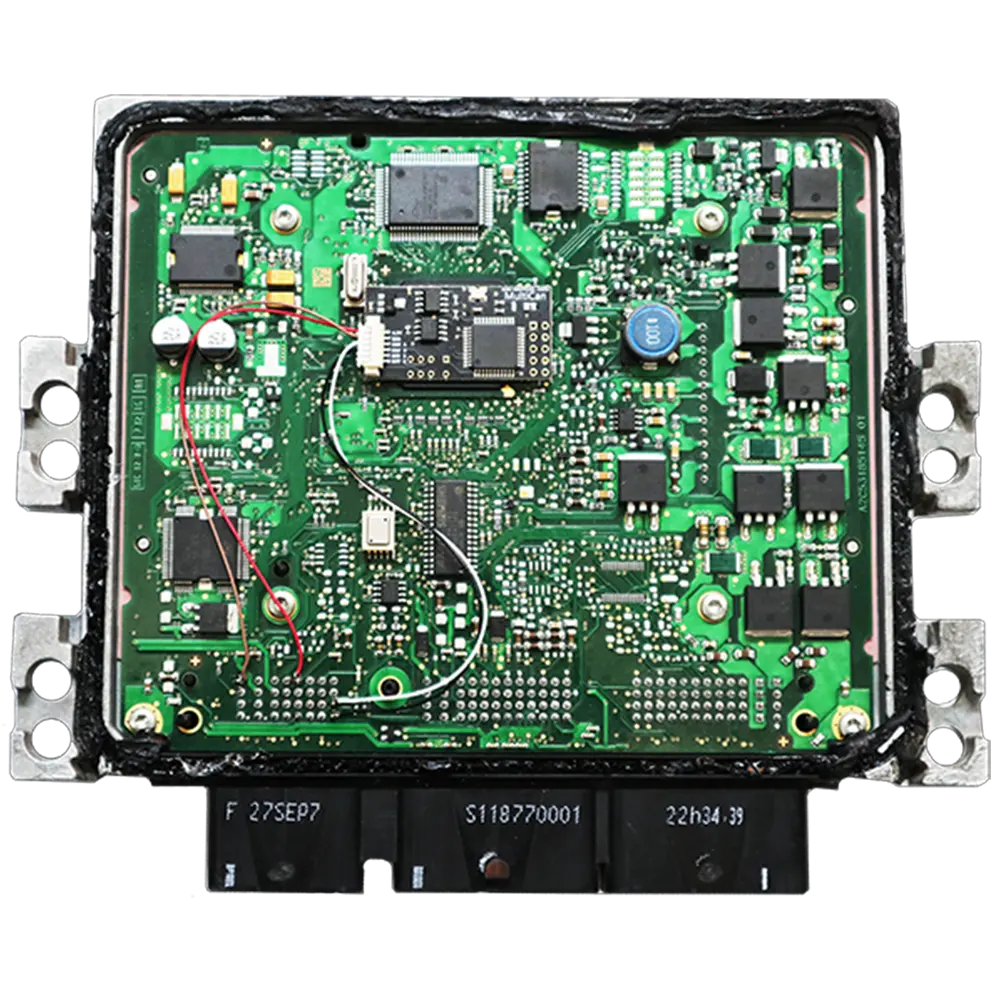

Renault sid 301 siemens ECU unit

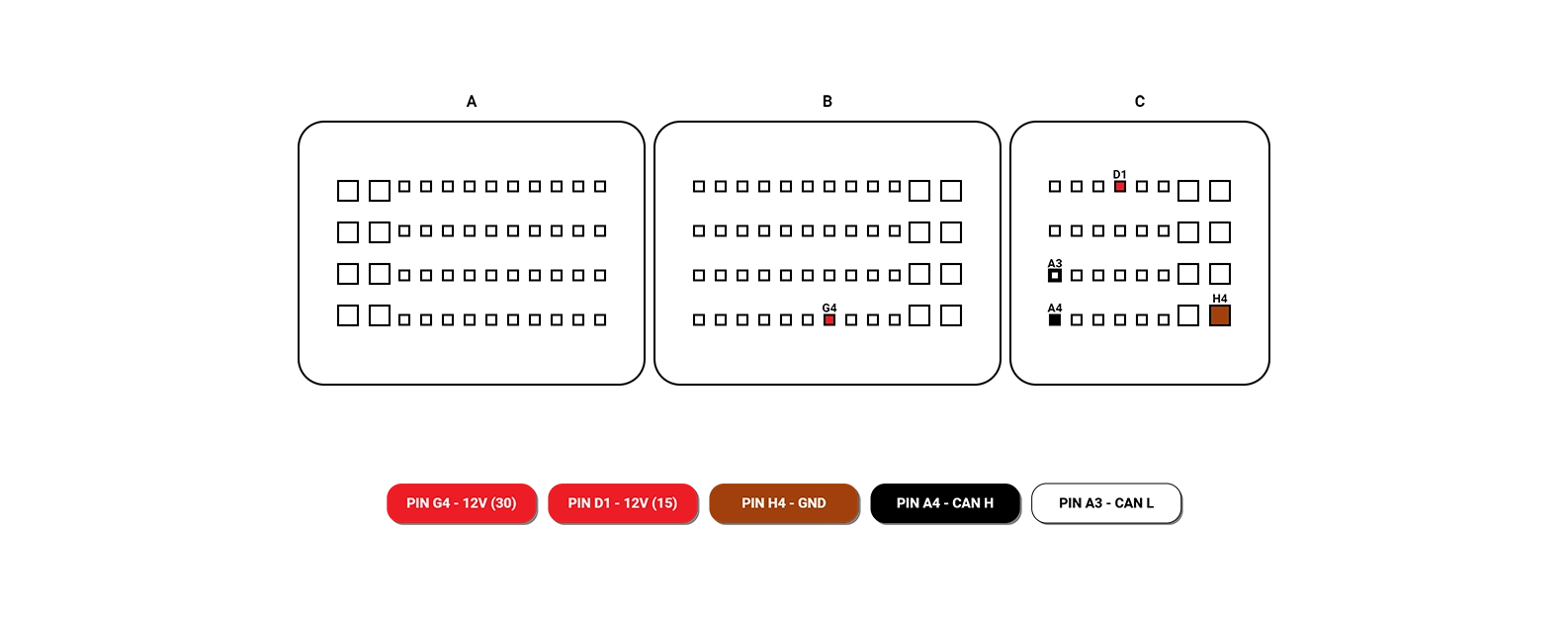

Renault sid 301 siemens ECU connection diagram
Renault sid 301 siemens ECU unit

CONNECTION

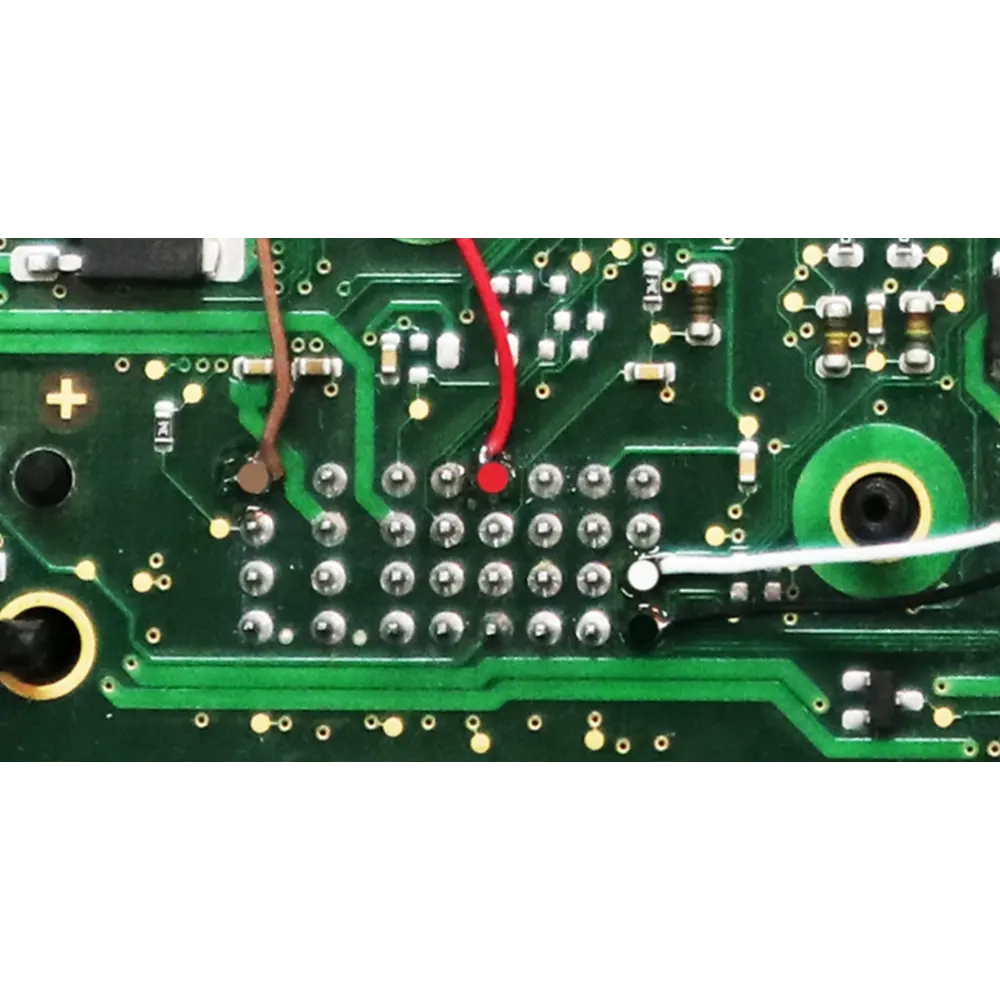

Renault sid 301 siemens ECU connection diagram

Upload ECU file

MultiCan emulator device ISK emulator module
BUY NOW
Siemens SID 301 ECU — HW, OEM, SW numbers | Renault

The table below lists hardware (HW), OEM and software (SW) numbers for the Siemens SID 301 ECU in Renault vehicles.

Producer Controller type HW no. OEM SW no. Car brand Model Engine Year
SiemensSID 301S122326107A8200542288RenaultClio III1.5 dCi2007-2008
SiemensSID 301S122326108A8200565863RenaultClio III1.5 dCi2007-2008
SiemensSID 301S122326109A8200565863RenaultMegane III1.5 dCi2008-2009
SiemensSID 301S122326110A8200659536RenaultScenic II1.5 dCi2005-2007
SiemensSID 301S122326111A8200766462RenaultMegane II1.5 dCi2007
SiemensSID 301S122326113A8200804775RenaultScenic II1.5 dCi2005-2007
SiemensSID 301S122326114A8200843713RenaultMegane III1.5 dCi2008-2009
SiemensSID 301S122326115A8200953296RenaultKangoo II1.5 dCi2011-2012
SiemensSID 301S122326116A8201051836RenaultKangoo II1.5 dCi2011-2012
SiemensSID 301S122326131A8200756434RenaultScenic1.5 dCi2006
SiemensSID 301S122326132A8200793109RenaultLaguna III1.5 dCi2009-2010
SiemensSID 301S122326133A8200882381RenaultLaguna III1.5 dCi2009-2010
SiemensSID 301S122326134A8200981816RenaultLaguna III1.5 dCi2009-2010
